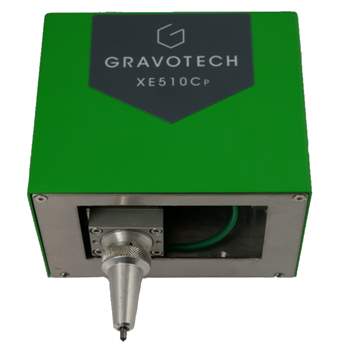

XE510Cp Integrable Pneumatic Dot Peen Marking Machine (50x20 mm)

https://www.unitedagents.net/web/image/product.template/11781/image_1920?unique=0c1bb4c
(0 review)

XF510Cp marking head: 50x20 mm
the ideal pneumatic marking machine for permanent identification of your parts. It has been designed to be easily integrated into production lines and to focus on your core needs.

0.000 EGP 0.0 EGP 0.000 EGP Tax Excluded

0.000 EGP Tax Excluded

Price on request

  • Brand
  • Origin
  • Air Consumption
  • Operating Temperature
  • Power consumption rate
  • Humidity level
  • Rated voltage
  • Weight
  • Marking Area
  • Communication interfaces (standard)
  • Marking Speed
  • Marking depth
  • Marking types
  • HMI (human machine interface)
  • Interface options
  • Additional Axis

This combination does not exist.

 Request a quote

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Share

Specifications

Info
Brand Gravotech
Origin FR
Technical Specs
Air Consumption 2 bar (29 PSI) - 4.5 bar (65 PSI)
Operating Temperature 5°C - 45°C (41°F - 113°F)
Power consumption rate 140 VA
Humidity level 0% - 80%
Rated voltage Controller: 100 V - 240 V AC / 50 - 60 Hz; Marking head: < 50 V DC
Dimensions and weights
Weight 2.2 kg
Marking Specs
Marking Area 50x20 mm
Communication interfaces (standard) Ethernet (TCP/IP), FTP, NTP, 2xUSB host, RS232, process IO, GPIO
Marking Speed Up to 6 characters per second
Marking depth 0.1 to 0.3 mm (depending on material, stylus speed...)
Marking types Fonts, Logos, 2D Codes
Interface specifications
HMI (human machine interface) 7’’ color touch screen. Allows full control of the machine and access to all functionalities without a PC
Interface options Profinet or Ethernet/IP field buses; dual channel safety module
Additional Axis Connectors for optional rotary Device and Z axis (true 4 axis controller)
