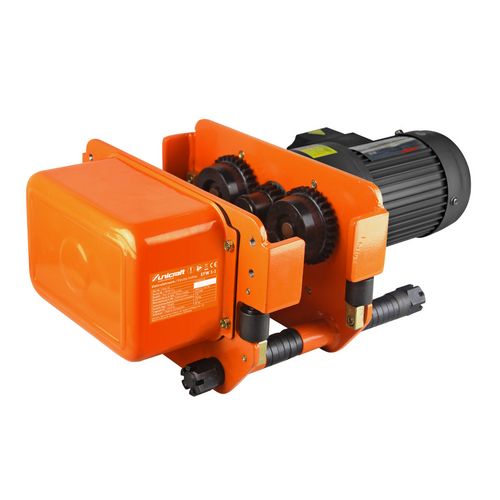

Electric Trolly EFW-1 series With a driving speed and 1 t maximum load capacity

https://bdcopartners-utec.odoo.com/web/image/product.template/10428/image_1920?unique=a917e84
(0 review)

Power connection and control of the chassis via the control bottle of the associated electric chain hoist Suitable for beams with profile types I, IPB, IPBl, IPBv, and IPE, and specified carrier flange width.

Load-bearing capacity: 1 t
Travel speed: 13.5 m/min
Carrier flange width: 74 – 140 mm
Max. curve radius: 4500 mm
Travel speed: 13.5 m/min
Width of holding eye: 24mm (A)
Thickness of mounting plate: 14mm (B)
Distance between holding eye and support surface: 145mm (D)
Motor throat: 310mm (M)
Control cabinet extension: 135mm (N)

Brand: UNICRAFT by STURMER

0.000 EGP 0.0 EGP 0.000 EGP VAT Excluded

0.000 EGP VAT Excluded

Request a quote

  • Brand
  • Power
  • Wheel/Disc diameter
  • Load-carrying capacity
  • Carrier flange width
  • Travel speed
  • Weight
  • Length x width x height
  • Width of holding eye
  • Thickness of mounting plate
  • Distance between holding eye and support surface
  • Motor throat
  • Control cabinet extension
  • Electrical connection

This combination does not exist.

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Specifications

Info
Brand UNICRAFT
Technical Specs
Power 0.4 KW
Wheel/Disc diameter 68 mm
Load-carrying capacity 1t
Carrier flange width 74-180 mm
Travel speed 13.5 m/min
Dimensions and weights
Weight 26kg
Length x width x height 715 x 340 x 260 mm
Width of holding eye 24mm (A)
Thickness of mounting plate 14mm (B)
Distance between holding eye and support surface 145mm (D)
Motor throat 310mm (M)
Control cabinet extension 135mm (N)
Electrical Data
Electrical connection 400 V / 3 Ph ~50 Hz
