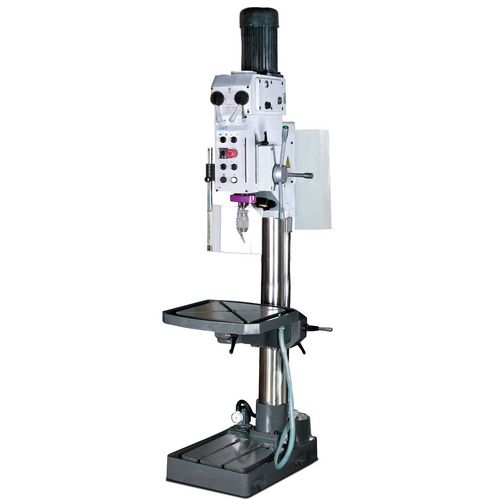

Gear drilling machine OPTIdrill B 40GSM Ø 35 mm

https://www.unitedagents.net/web/image/product.template/11443/image_1920?unique=e34560c
(0 review)

Scope of supply
> Quick-action drill chuck 1 - 16 mm
> Morse taper MK
> T-slot nuts

0.000 EGP 0.0 EGP 0.000 EGP VAT Excluded

0.000 EGP VAT Excluded

Request a quote

  • Brand
  • Weight
  • Column diameter
  • Length x width x height
  • Electrical connection
  • Motor output
  • Coolant pump motor
  • Drilling performance in steel
  • Continuous drilling performance steel
  • Thread tapping steel
  • Spindle sleeve stroke
  • Spindle holder
  • Throat
  • Spindle sleeve feed
  • Spindle speeds
  • Number of speeds
  • Drilling table workspace L x W
  • T-slot size
  • Drilling table load bearing capacity
  • Drill table rotation/lateral pivot
  • Clearance spindle - drilling table
  • Machine base work area L x W
  • T-slot size/distance/amount
  • Clearance spindle - machine base

This combination does not exist.

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Specifications

Info
Brand OPTIMUM
Dimensions and weights
Weight 500 Kg
Column diameter 150 mm
Length x width x height 935 x 530 x 2 280 mm
Electrical Data
Electrical connection 400 V / 3 Ph ~50 Hz
Motor output 0.85 / 1.5 kW
Coolant pump motor 40W
Drilling performance
Drilling performance in steel Ø 35 mm
Continuous drilling performance steel Ø 30 mm
Thread tapping steel M24
Spindle
Spindle sleeve stroke 180 mm
Spindle holder MT 4
Throat 350 mm
Spindle sleeve feed 2 speeds, 0.1/0.2 mm/rev
Rotational speeds
Spindle speeds 50 - 1450 rpm
Number of speeds 18 speeds
Drilling table
Drilling table workspace L x W 560 x 560 mm
T-slot size 18 mm, 2 diagonal
Drilling table load bearing capacity 250 kg
Drill table rotation/lateral pivot ± 90°
Clearance spindle - drilling table 780 mm
Machine base
Machine base work area L x W 510 x 500 mm
T-slot size/distance/amount 18 mm / 2 / 150 mm
Clearance spindle - machine base 1,320 mm
