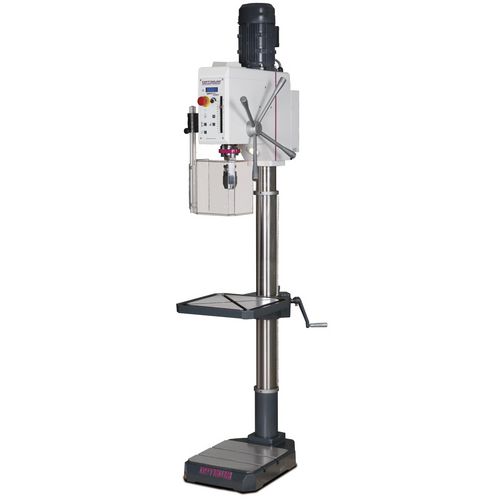

OPTIdrill DH 28GSV (With gear wheels made of polyamide)

https://bdcopartners-utec.odoo.com/web/image/product.template/11922/image_1920?unique=2ac01c0
(0 review)

DELIVERY CONTENTS:

Adapter MK3-B16

0.000 EGP 0.0 EGP 0.000 EGP VAT Excluded

0.000 EGP VAT Excluded

Request a quote

  • Brand
  • Weight
  • Column diameter
  • Length x width x height
  • Electrical connection
  • Motor output
  • Drilling performance in steel
  • Continuous drilling performance steel
  • Thread tapping steel
  • Reach
  • Spindle sleeve stroke
  • Spindle holder
  • Spindle speeds
  • Number of speeds
  • Drilling table workspace L x W
  • Drill table rotation/lateral pivot
  • Clearance spindle - drilling table
  • Drilling Table T-slot size/distance/amount
  • Machine Base T-slot size/distance/amount
  • Machine base work area L x W
  • Clearance spindle - machine base
  • Standard
  • EMV-Class
  • VPE

This combination does not exist.

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

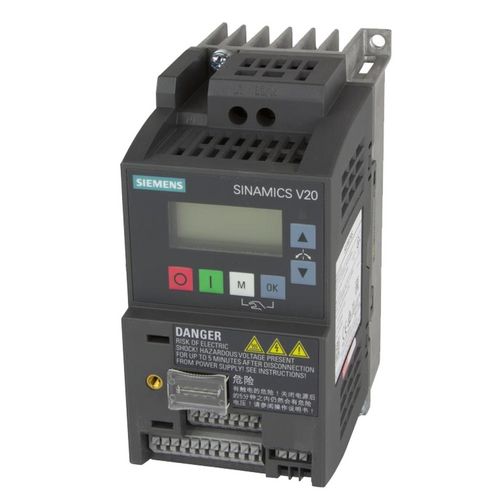

Column drills with SIEMENS inverter technology and gears made of polyamide.

Facts that impress in terms of quality, performance and price

  • Heavy, solid cast design
  • Frequency converter
  • Thread tapping function
  • Smooth action thanks to ground multi-tooth
  • carrier
  • Excellent true running accuracy thanks to
  • hardened and ground main spindle
  • Low-maintenance, grease-lubricated gearbox
  • Gearbox with PA6 gearwheels
  • Large speed range
  • Generously dimensioned, height adjustable
  • protective screen with safety switch for greatest
  • possible user protection

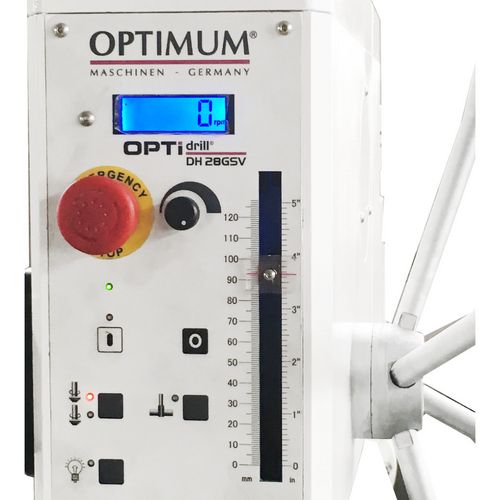

  • Adjustable drill depth stop with millimetres scale
  • Right-/left-hand rotation
  • Machine lamp integrated in drilling head
  • Integrated push-out tool for easy tool changes
  • Precision machined drilling table with two
  • diagonal T-slots with all-around cooling water channel





  •  Thick walled cast column for high force
  • absorption and stability
  • Solid baseplate, large dimensions and heavily
  • ribbed on rear
  •  Possibility to connect the optional foot switch
  • (article no. 3050032). The foot switch is used
  • to reverse the direction of rotation for tapping,
  • and can also be used to switch off the automatic
  • quill feed.



Specifications

Info
Brand OPTIMUM

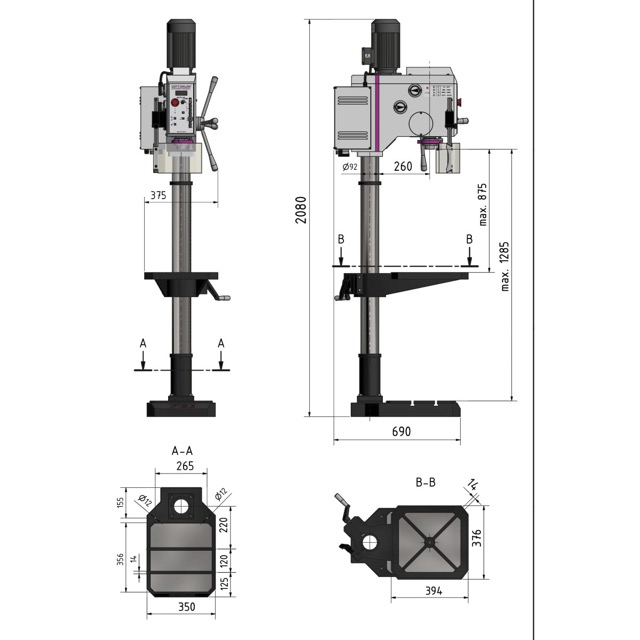

Dimensions and weights
Weight 184 kg
Column diameter 92 mm
Length x width x height 690 x 375 x 2080 mm
Electrical Data
Electrical connection 400 V / 3 Ph ~50 Hz
Motor output 1.5 KW
Drilling performance
Drilling performance in steel 26 mm
Continuous drilling performance steel 23 mm
Thread tapping steel M 16 x 2 mm
Spindle
Reach 260 mm
Spindle sleeve stroke 127 mm
Spindle holder MK 3
Rotational speeds
Spindle speeds 45 – 3200 min¯¹
Number of speeds 4 speeds, electronically controlled
Drilling table
Drilling table workspace L x W 376 x 394 mm
Drill table rotation/lateral pivot 360° / ± 90°
Clearance spindle - drilling table 875 mm
Drilling Table T-slot size/distance/amount 14 mm / 2
Machine base
Machine Base T-slot size/distance/amount 14mm / 120mm / 2
Machine base work area L x W 350 x 356 mm
Clearance spindle - machine base 1285 mm
Standars & Certification
Standard DIN EN 55011
EMV-Class C2
VPE 1
