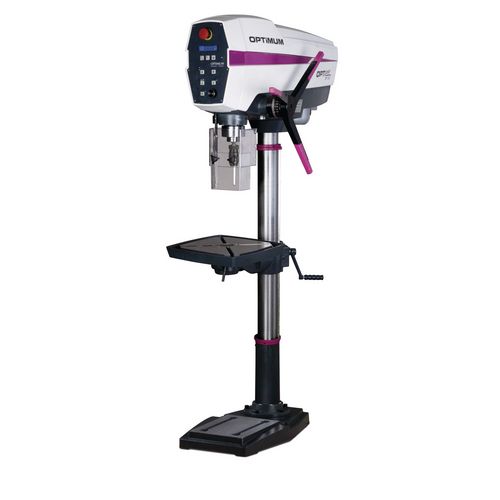

OPTIdrill DP 33V With V-belt drive in a modern design

https://bdcopartners-utec.odoo.com/web/image/product.template/11921/image_1920?unique=33c0ca5
(0 review)

Scope of delivery
> Quick-action drill chuck 1 - 16 mm
> T-slot nuts
> Push-out tool
> Taper mandrel for drill chuck
> Operating tool

0.000 EGP 0.0 EGP 0.000 EGP VAT Excluded

0.000 EGP VAT Excluded

Request a quote

  • Brand
  • Weight
  • Length
  • Column diameter
  • Width/depth (product) approx.
  • Height (product) approx.
  • Supply voltage
  • Mains frequency
  • Drive motor output
  • Drilling performance in steel
  • Continuous drilling performance steel
  • Thread tapping steel
  • Spindle chuck
  • Reach
  • Spindle sleeve stroke
  • Min. distance chuck - drilling table
  • Drilling table workspace L x W
  • Drilling Table T-slot size/distance/amount
  • Machine Base T-slot size/distance/amount
  • Machine base work area L x W
  • Clearance spindle - machine base
  • Speed range
  • Speed control
  • VPE

This combination does not exist.

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Specifications

Info
Brand OPTIMUM
Dimensions and weights
Weight 177 Kg
Length 945 mm
Column diameter 92 mm
Width/depth (product) approx. 480 mm
Height (product) approx. 1880 mm
Electrical Data
Supply voltage 400 V
Mains frequency 50 Hz
Drive motor output 1.1 Kw
Drilling performance
Drilling performance in steel Ø 30 mm
Continuous drilling performance steel Ø 25 mm
Thread tapping steel M12
Spindle
Spindle chuck MT4
Reach 270 mm
Spindle sleeve stroke 125 mm
Drilling table
Min. distance chuck - drilling table 775 mm
Drilling table workspace L x W 387 x 387 mm
Drilling Table T-slot size/distance/amount 14mm / 2
Machine base
Machine Base T-slot size/distance/amount 14mm / 150mm / 2
Machine base work area L x W 270 x 327 mm
Clearance spindle - machine base 1300 mm
Speed Range
Speed range 70 – 2800 min¯¹
Speed control 9 Stages
Standars & Certification
VPE 1
