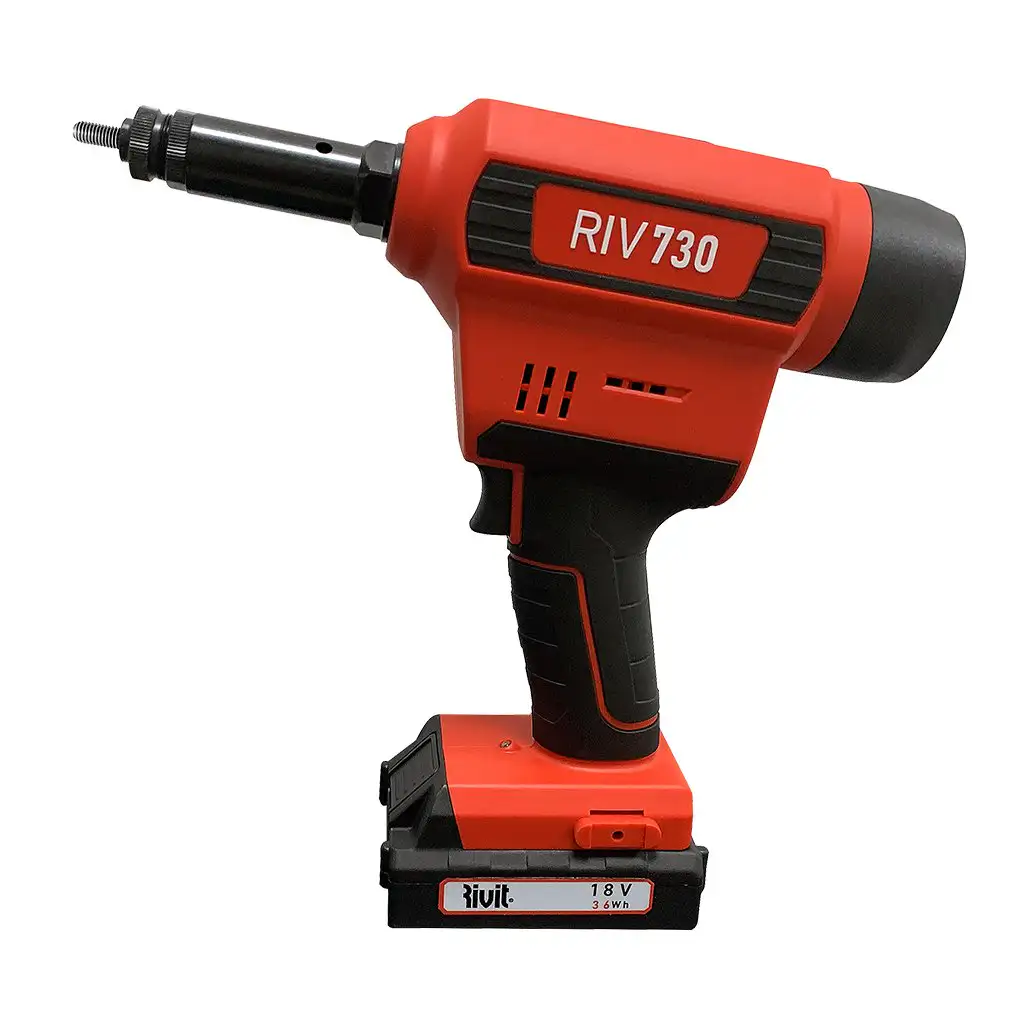

RIV730-BATT. TOOL RIVET NUTS M3-10 W/BATT.+CHRG. M3-M10
RIV730 makes of easyness and reliability its strong points, offering the customer a value-added solution covering a wide range of applications, for rivet nuts from M3 to M10 mm.
Tie rod holder head manually adjustable stroke.

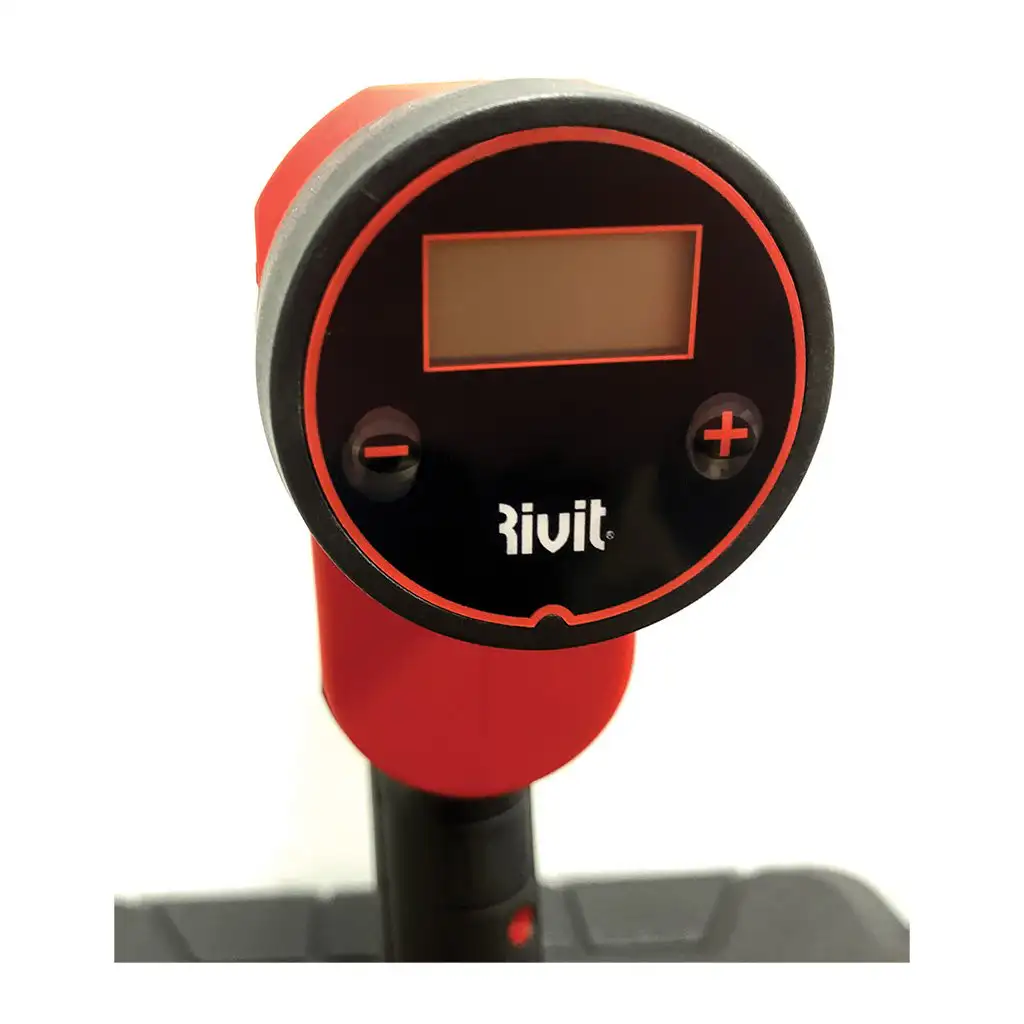

Touch panel selection/adjustment of functions (Stroke adjustment, Counter, Manual and automatic setting).
Power: 18 Volt (battery)
Stroke (mm):10
tensile stress at 6bar (N): 28000
Weight (kg): 2.1
Documents
Specifications
| Info | |
|---|---|
| Brand | RIVIT |
| Technical Specs | |
|---|---|
| Battery Capacity | 2.0 Ah |
| Stroke | 10 mm |
| Battery Voltage | 18v |
| Pull Force | 20,000 N |
| Dimensions and weights | |
|---|---|
| Weight | 2.1 Kg |
