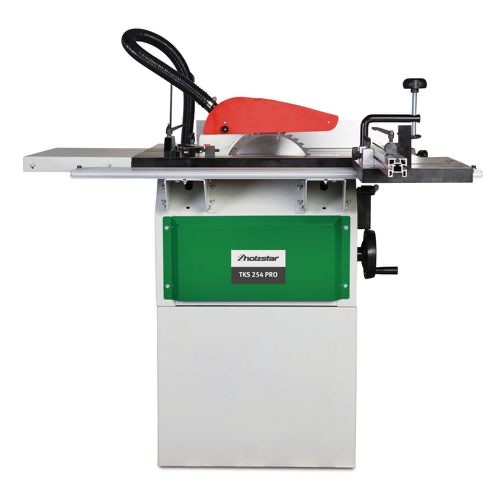

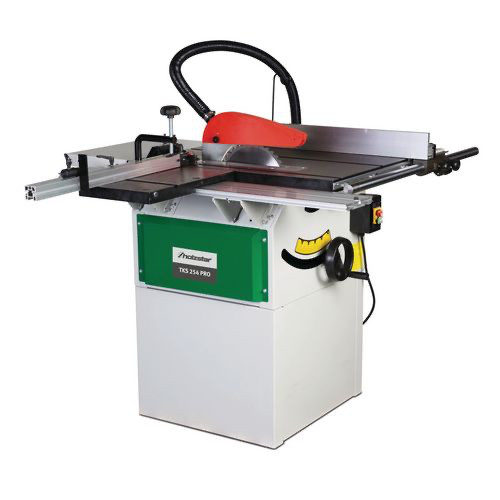

Table saw TKS 254 PRO (400 V)

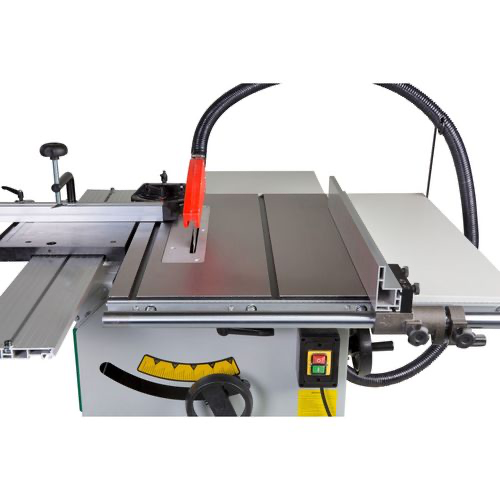

- Large cast iron table
- Stable suspension of the saw unit

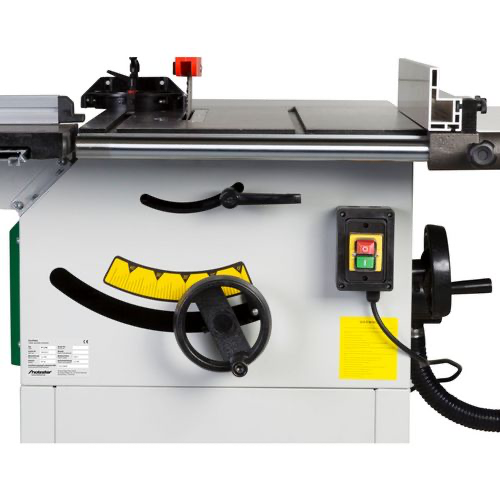

- Saw blade height adjustment via handwheel from the operator front
- Equipped with a powerful motor and thermal overload protection

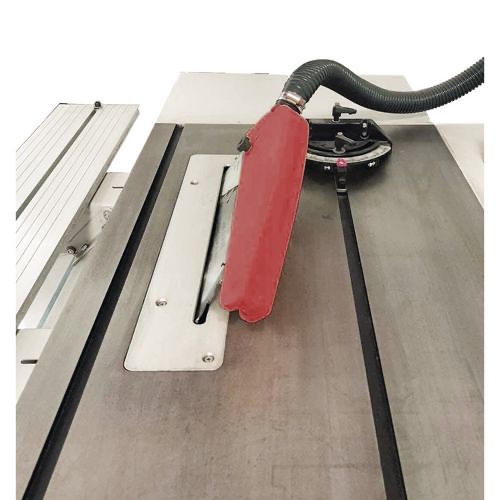

- Integrated extraction connection on the saw blade guard
- Table extension as standard

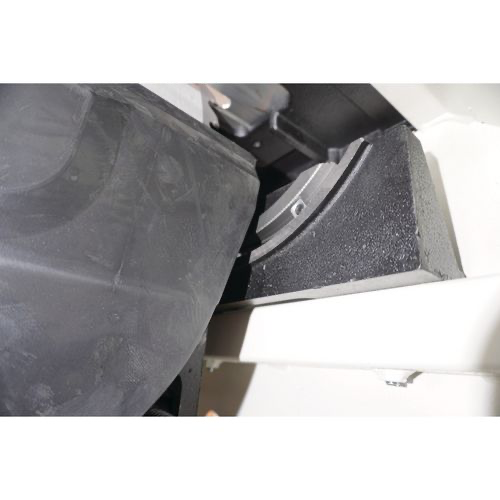

- Cast iron suspension of the saw unit
- The solid construction ensures particularly high stability and vibration damping
- Saw blade inclination 45° degrees to the right
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | HolzStar |
| Dimensions and weights | |
|---|---|
| Weight | 132 kg |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Drive motor output | 2.1 kW (3.0 hp) |
| Circular saw unit | |
|---|---|
| Max. cutting width with rip fence | 610 mm |
| Max. cross cut width left from saw blade | 550 mm |
| Saw blade angle | 90 – 45 ° |
| Max. cutting height 90° | 80 mm |
| Max. cutting height 45° | 56 mm |
| (Main) saw blade diameter | 254 mm |
| (Main) saw blade speed | 4000 min¯¹ |
| Extraction port | |
|---|---|
| Extraction port diameter bottom | 100 mm |
| Saw blade protection extraction port diameter | 30 mm |
| Pre-scoring unit | |
|---|---|
| Diameter saw blade | 254 mm |
| Sliding carriage and table | |
|---|---|
| Sliding carriage length | 400 mm |
| Sliding carriage width | 250 mm |
| Table length | 720 mm |
| Table width | 480 mm |
| Work height | 830 mm |
