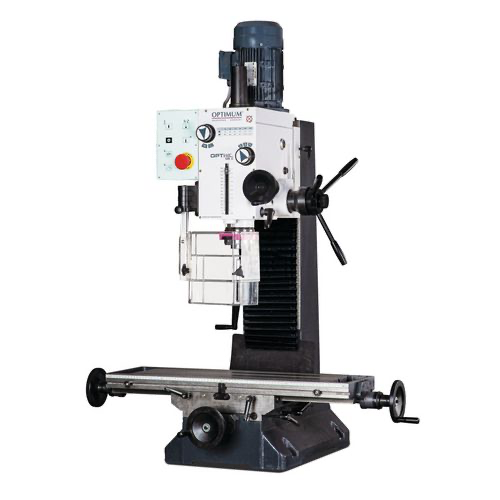

Drilling and milling machine OPTImill MB 4
Universal precision drilling and milling machines with two-stage drive motor with manual gearbox
- Heavy, solid
- cast
- designQuality industrial electric motorHighly
- smooth running thanks to ground gear wheels running in an oil
- bathRight/left
- rotationMassive
- and generously dimensioned cross table, with T-slots and adjustable gibsDrilling
- depth
- stopManual

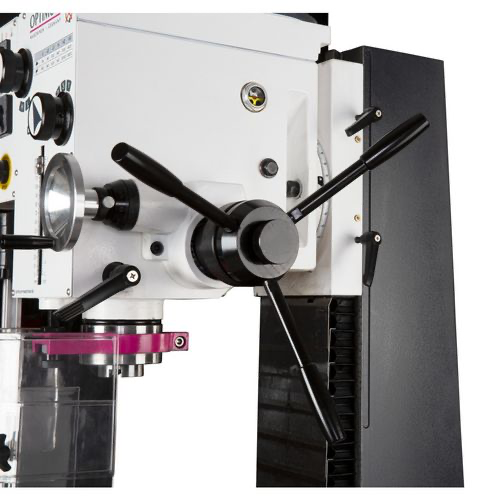

- spindle sleeve feed with fine
- feedAdjustable and readjustable feed spindle playOperator-friendly

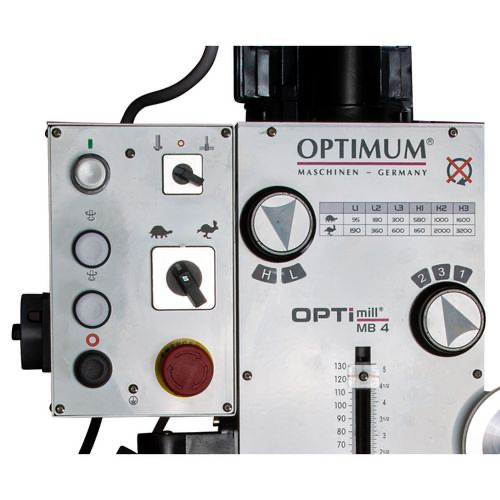

- control panel with emergency stop switchColumn
- with hand-scraped dovetail guideHeight-adjustable

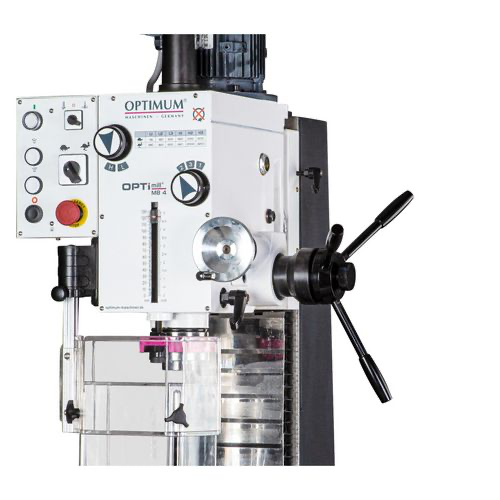

- , large protective screen with microswitch
- Wide speed range from 95 - 3200 min¯¹ with two stages, electronically controlled
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | OPTIMUM |
| Dimensions and weights | |
|---|---|
| Weight | 320 Kg |
| Length | 1155 mm |
| Width/depth (product) approx. | 775 mm |
| Height (product) approx. | 1320 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Standars & Certification | |
|---|---|
| Standard | DIN EN 55011 |
| Drilling/milling output | |
|---|---|
| Max. size milling head | 63 mm |
| Max. size shaft milling cutter | 28mm |
| Drilling performance steel (S235JR) | 32 mm |
| Continuous drilling performance steel (S235JR) | 28 mm |
| Milling table horizontal | |
|---|---|
| Horizontal milling table length | 800 mm |
| Horizontal milling table width | 240mm |
| Max. clearance vertical spindle - horizontal milling table | 460 mm |
| Horizontal milling table T-groove size | 14mm |
| Horizontal milling table T-groove number | 3 |
| Travel | |
|---|---|
| Travel X axis manual | 450 mm |
| Travel Y axis manual | 195mm |
| Travel Z axis manual | 430 mm |
| Vertical spindle | |
|---|---|
| Vertical spindle reach | 275 mm |
| Vertical spindle spindle chuck | MT 4 |
| Vertical spindle speed range | 95 – 3200min¯¹ |
| Vertical spindle swivel range milling cutter head Z - X plane | ± 45° |
| Vertical spindle tightening bar | M 16 |
| Vertical spindle quill diameter | 75 mm |
| Vertical spindle quill stroke | 120 mm |
