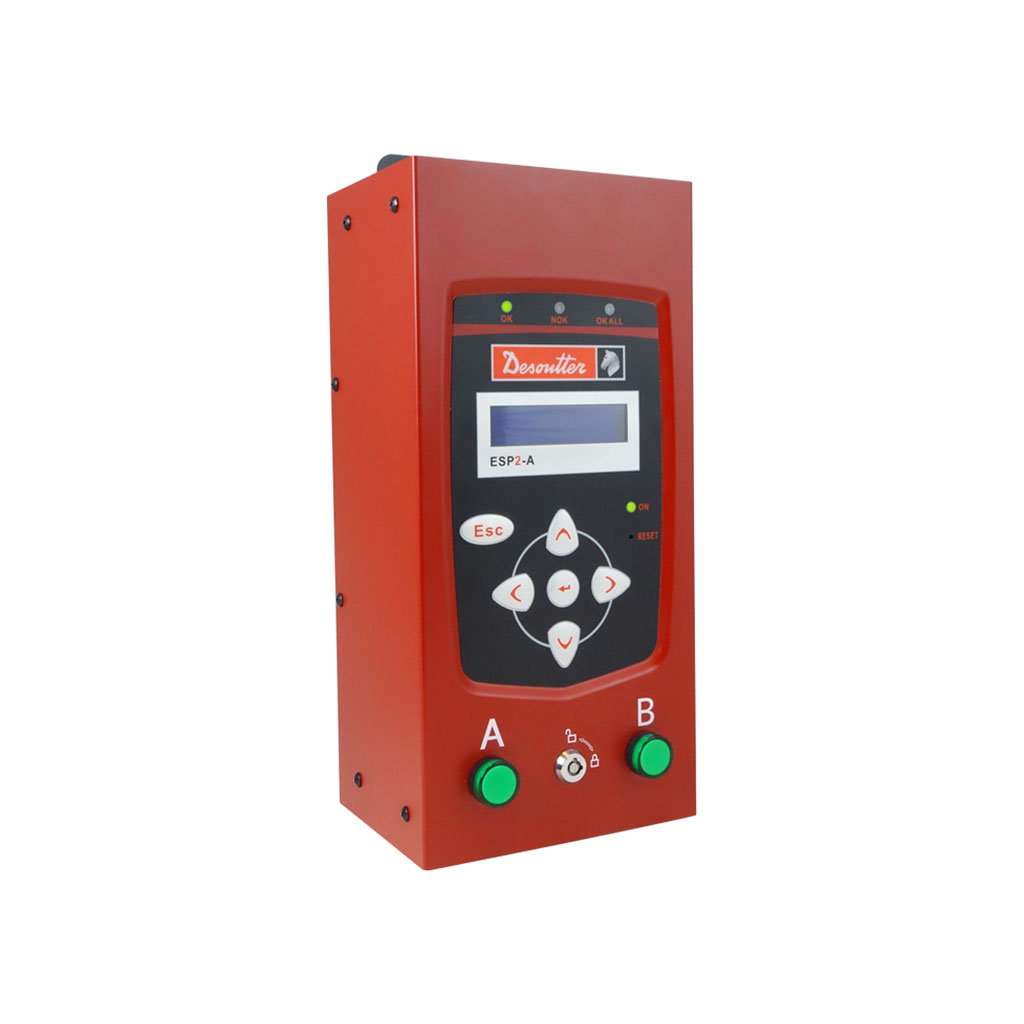

ESP2A low voltage screwdriver controller for applications from 0.07 to 12Nm
Designed to optimise the performance of Desoutter’s SLBN screwdrivers, the ESP2A reduces your energy consumption, provides up to 5 program settings and PLC integration, including remote start and tool enable.In addition to OK/NOK and batch OK reporting, the ESP2A offers a comprehensive range of rundown options, including Pre-run reverse, Slow Start, Tightening Phase, Post-run reverse.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Desoutter |
| Technical Specs | |
|---|---|
| Rated input power | Single phase 100/240V, 50/60Hz |
| Output signal | OK, NOK, OK Batch, Tool running forward, Tool running reverse, 24/12 Vdc |
| Monitoring | Time monitoring |
| Input signal | Remote Start, Remote Reverse, Enable tool A, Enable tool B, Enable Reverse, Reset Batch, NOK Acknowledgment, Psets 1 to 5, PreRun Reverse enable |
| Batch count | Up to 99 |
| Advanced tightening strategies | PreRun reverse, Slow Start, Final Fastening, Post run reverse |
| Dimensions and weights | |
|---|---|
| Weight | 2.8 kg |
| Length x width x height | 105x135x285 mm |
