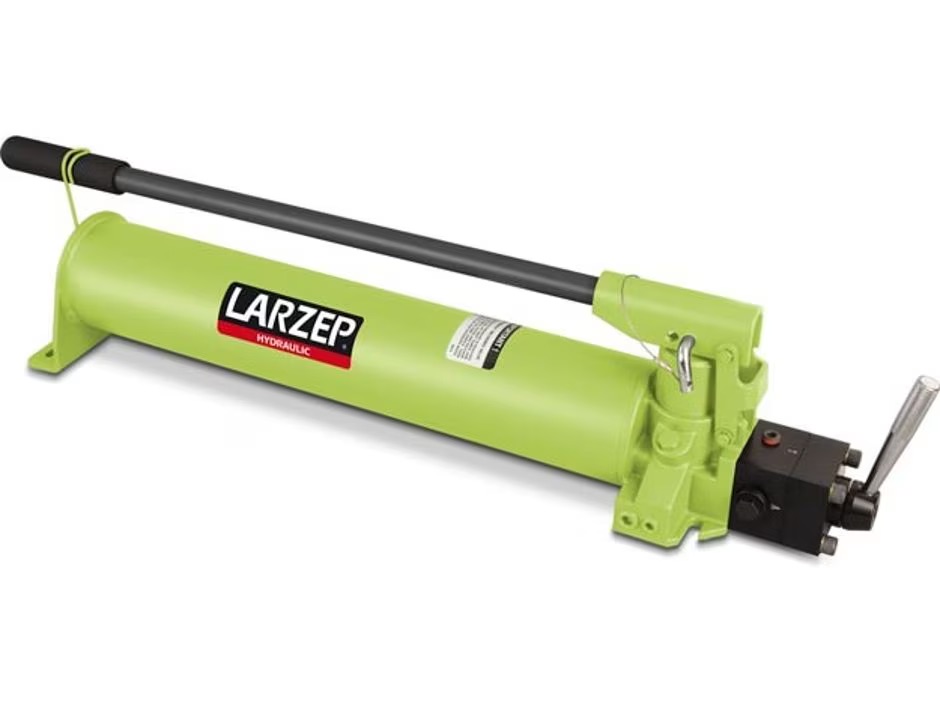

Specifications
| Info | |
|---|---|
| Brand | Larzep |
| Origin | ES |
| Technical Specs | |
|---|---|
| Material Type | Steel |
| Maximum Operating Pressure (bar) | 700 |
| Pressure Rating 1st Stage (bar) | 27 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Double-acting |
| Pump Type | Two speed |
| Usable Oil Capacity (cm3) | 2,600 |
| Oil Displacement Per Stroke 1st Stage (cm3) | 46,0 |
| Maximum Handle Effort (kg) | 41 |
| Dimensions and weights | |
|---|---|
| Weight | 14.3 Kg |
| Others | |
|---|---|
| Oil Displacement Per Stroke 2nd Stage (cm3) | 4,0 |
