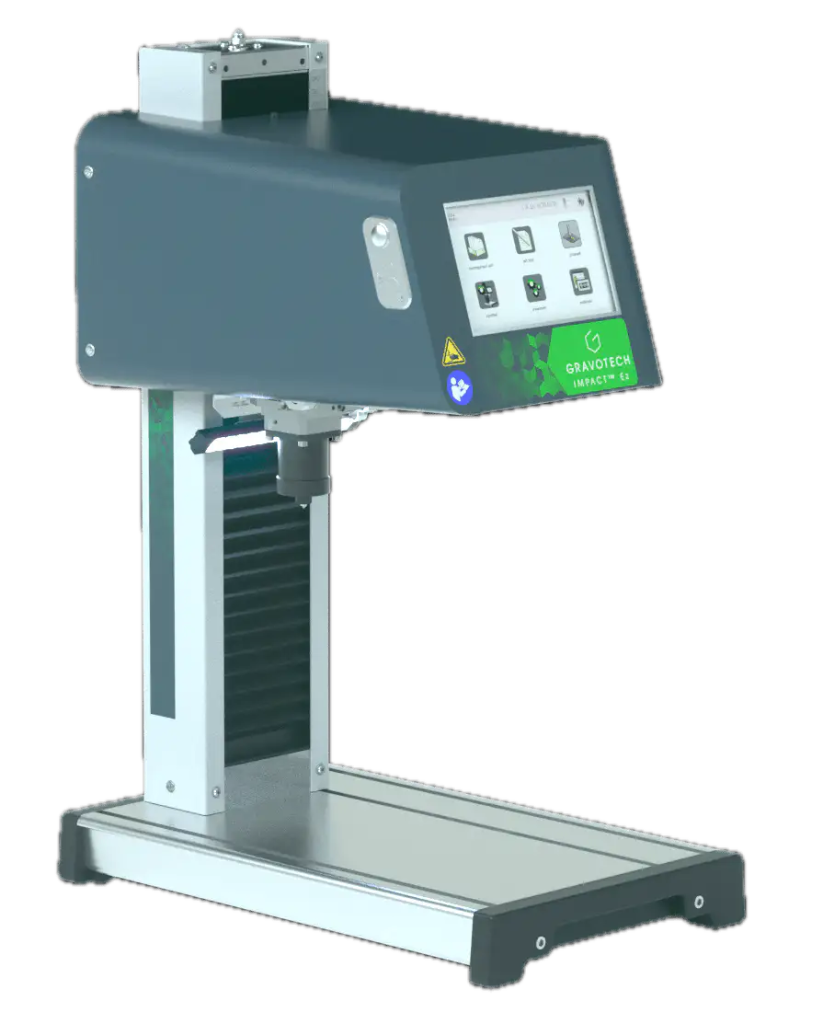

IMPACT eZ Electromagnetic Marking machine - motorized column

https://www.unitedagents.net/web/image/product.template/12384/image_1920?unique=0c1bb4c
(0 review)
The Impact dot peen engraver is a standalone metal engraving machine easy to configure and master. Take your business to the next level, whatever its size and expertise.

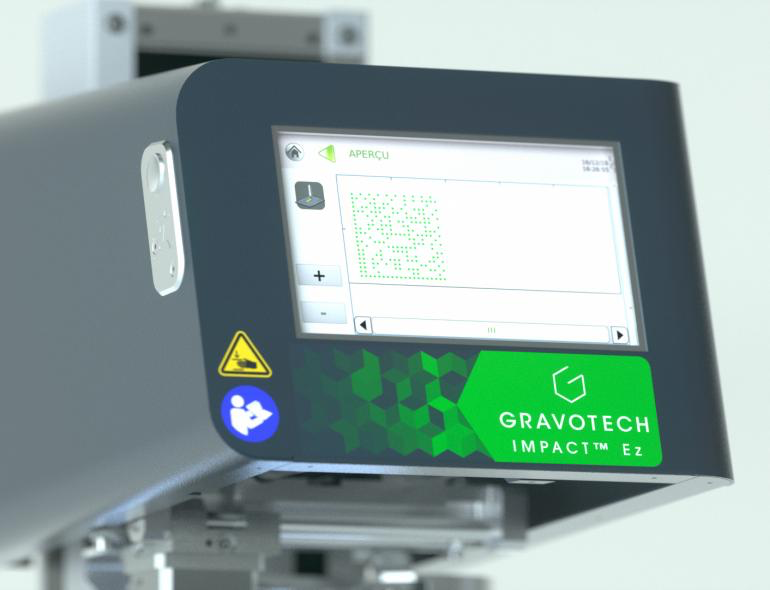

  • TOUCH & MARK
    The large color touchscreen and onboard control software make training a thing of the past. The intuitive system allows you to start marking text, logos and 2D codes straight away. Also metal plate engraving makes it the best engraving machine for metal. It makes the operator’s life easy and does not require a computer.

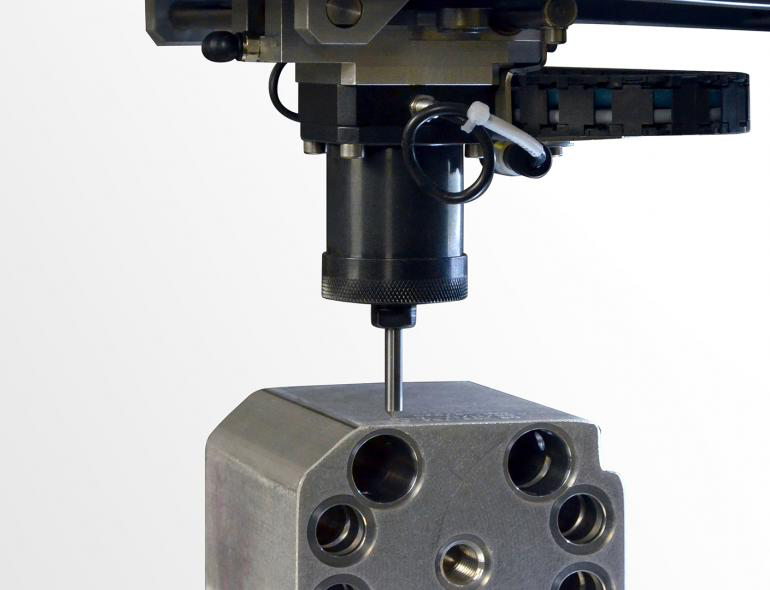

  • I-SENSE DOT PEEN MARKING STATION
    The I-Sense function (Impact eZ m) detects the surface of the workpiece, automatically adjusts the height of the Z-axis and starts marking with no intervention on the part of the operator. Several adjustment modes are available: automatic mode (I-Sense), programmable mode and normal mode, which allows manual adjustment.

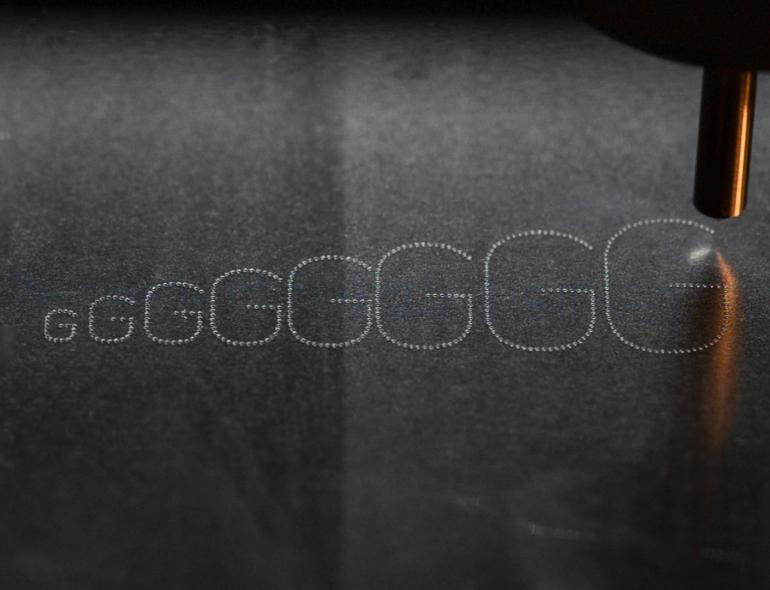

  • DYNAMIC DOT CONTROL
    Obtain a perfect result every time with the IMPACT DDC™ (Dynamic Dot Control, on Impact m and eZ m) feature, a technology which enables automatic adjustment of point density according to the required size and depth of marking.


0.000 EGP 0.0 EGP 0.000 EGP Tax Excluded

0.000 EGP Tax Excluded

Price on request

  • Brand
  • Origin
  • Z axis type
  • Machine dimensions (L x W x H)
  • Marking Area
  • Communication interfaces (standard)
  • Embedded fonts
  • Display
  • Languages available
  • 2D codes
  • Power consumption rate
  • Rated voltage
  • Compressed air supply
  • Operating Temperature
  • Weight
  • Rotary Device (option)

This combination does not exist.

 Request a quote

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Share

Engraving Machine for Metal & Plastics

The IMPACT dot peen engraver range, is a small engraving machine that makes it possible to perform high-quality marking on a large number of materials from, metal plate engraving (painted steel, aluminum, brass, iron, steel, raw, and anodized aluminum) to plastics (ABS, PA, PP).

Dot Peen Marking Station

From single part markings to small batches the IMPACT is loved for it size and versatility.

With a 11.81 in clearance and open architecture traceability on, one of the smallest parts to identification on larger heavier parts are available. No job is too big. Used by automotive, aerospace, medical, and from heavy and light industries, the Impact small engraving machine has become a favorite workstation.

Ready To Go

We took all of our experience working within industrial traceability and created the IMPACT for maximum flexibility,  when both marking requirements and parts to be marked are constantly changing.

The IMPACT was created to be the all in one, ready to go solution, with usability at the forefront and designed to be opened and ready to start marking immediately.

SOFTWARE

Integrated traceability software with colour touchscreen (no PC required)
Easy marking management & user interface

Easy to use and powerful, the IMPACT simplifies your marking workflow, making it manageable for any operator: user-friendly interface and navigation in the menus, visualization, marking simulation, easy management of parameters and simple launch ofthe marking.

You can identify your parts (text, serial numbers, logo), generate unique codes (Datamatrix, QR codes, UID, GS1) and configure your variables, counters and date codes.

Design for industrial environment

The IMPACT is ultra-resistant and has been designed to fit into any environment, even the most demanding ones. Its waterproof touch screen is made of reinforced glass and its casing is highly resistant to shocks.

Accessories

Rotary accessory for cylindrical parts marking

Hand-held or fixed-position scanner for code reading or checking

Wide range of high performance stylus marking tools

APF (Automatic Plate Feeder)

Protective bellow (optional)

Sound-proof positioning plate with magnetic quick release clamp

Applications

ID plates

Various small parts

Tools

Plastics


Plastics

Painted, coated, raw materials

Specifications

Info
Brand Gravotech
Origin FR
Technical Specs
Z axis type Manual, 300 mm (11.81 in)
Display 7” color touchscreen
Power consumption rate 130 VA
Rated voltage 100 - 240 V AC
Operating Temperature 5°C - 45°C (41°F - 113°F)
Rotary Device (option) RD1, RD2
Dimensions and weights
Machine dimensions (L x W x H) 490 x 270 x 704 mm
Weight 26 kg (57.32 lbs)
Marking Specs
Marking Area 100 x 120 mm (3.94 x 4.72 in)
Communication interfaces (standard) RJ45, USB(x2), RS232, 8I/4O, Process IO
Embedded fonts 10
Languages available 19
2D codes Datamatrix, QR Codes
Compressed air supply 2 - 6 Bar
