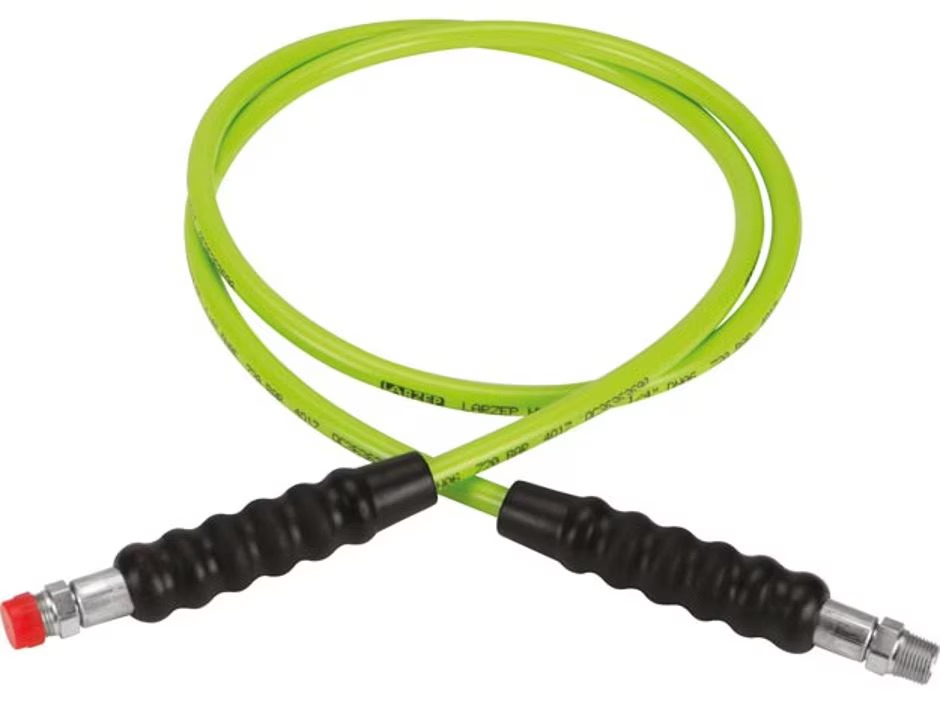

Hydraulic Hose, 6,4 mm Internal Diameter (3/8"-NPT - AZ3120)
- 4:1 Safety Factor.
- 700 bar working pressure.
- Wide range of standard hydraulic hoses up to 10 metres. Hoses can be supplied in any length on request.
- Rubber Guard on both ends.
- 3/8 inch;-NPT thread on each end. Can be supplied with couplers on one or both ends.
- Internal Diameter 6,4 mm; Oil Capacity: 35 cm3 per metre.
- Minimum Bending radius: 115 mm.
- WARNING: Never disconnect the hose when the system is pressurized. Never exceed the maximum working pressure of the hose.
- NOTE: Apply 2 rounds of Teflon around all 3/8 inch; NPT threads of the system, in the thread direction, leaving the first thread uncovered to prevent the tape breaking and entering the hydraulic system. Torque: 80 Nm.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Larzep |
| Origin | ES |
| Technical Specs | |
|---|---|
| Internal Diameter (mm) | 6.4 |
| End One Assembly | 3/8"-NPT |
| End Two Assembly | AZ3120 |
| Dimensions and weights | |
|---|---|
| Weight | 2.8 kg |
| Others | |
|---|---|
| Hydraulic hose | 0.8 m, 1.5 m, 2 m, 3 m, 4 m, 6 m, 10 m |
