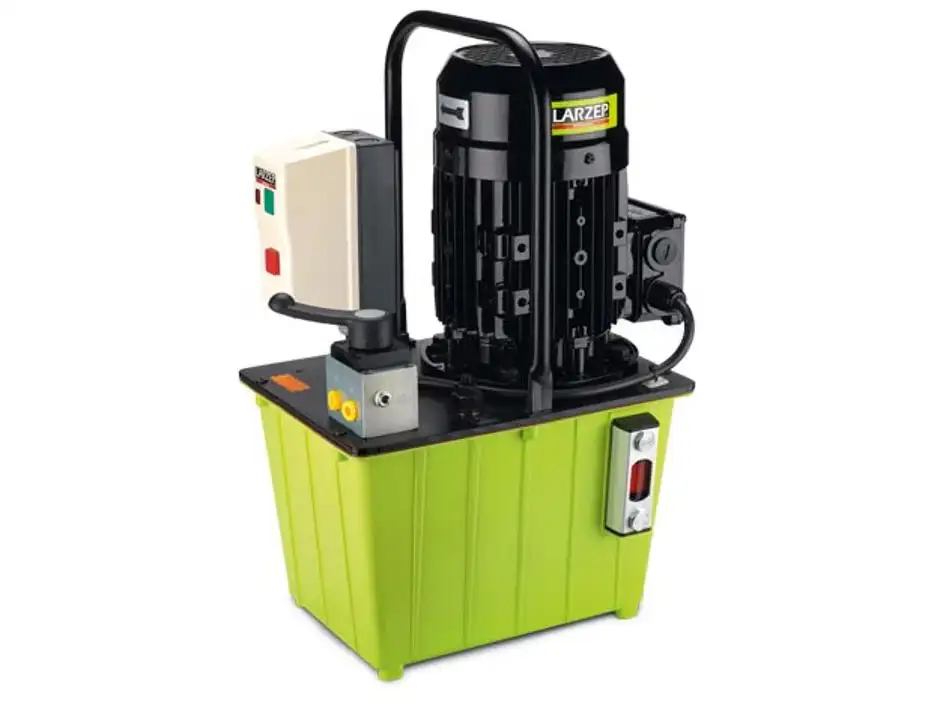

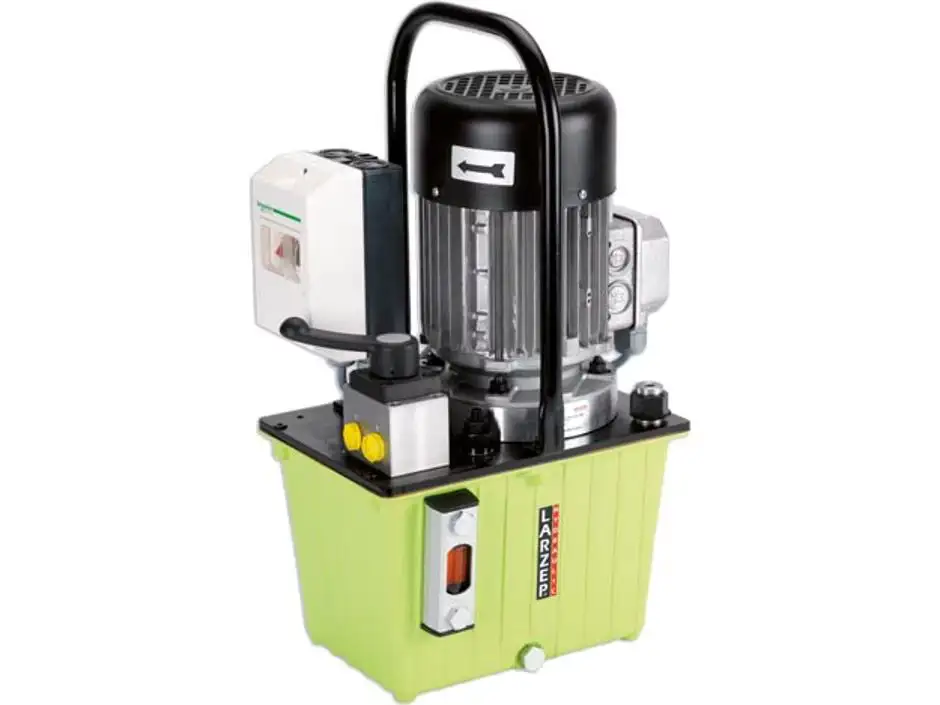

LARZEP Hydraulic Electric Powerpack, 4/3 Manual Valve, 1,64-14 liter Oil Flow at 700 bar, 25 liter Reservoir, D/A, 400V (Single or double acting)
- Manual directional control valves.
- The manual control valve is easily converted from double acting to single acting operation.
- Internal safety valve set at 700 bar to prevent overpressure.
- External adjustable pressure relief valve.
- For use with single acting or double acting cylinders for heavy lifting or production applications.
- Options: roll bars, glycerine pressure gauge and push button remote motor control.
- NOTE: Pressure gauge is not included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Larzep |
| Origin | ES |
| Technical Specs | |
|---|---|
| Valve type | 4-way, 3-position |
| Maximum Operating Pressure (bar) | 700 |
| Pump Type | Manual Valve |
| Reservoir Capacity (litres) | 25 L |
| Output Flow Rate at 50 bar (l/min) | 14,00 |
| Output Flow Rate at 700 bar (l/min) | 1,64 |
| Motor Size (kW) | 2,20 |
| Valve Operation | Manual |
| Motor Electrical Specification | 400V-3ph-50/60Hz |
| Dimensions and weights | |
|---|---|
| Weight | 78 Kg |
