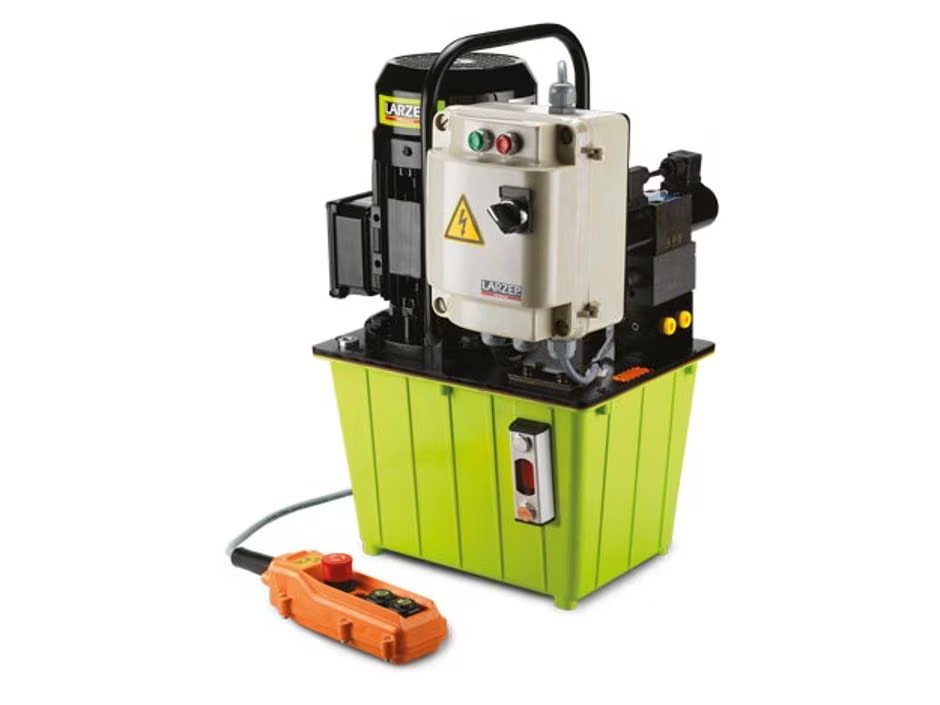

Hydraulic Electric Powerpack, 4/3 Solenoid Valve, 0,54 liter Oil Flow at 700 bar, 12,5 liter Reservoir, D/A, 230V
Remote pendant controlled solenoid valves with up, down and emergency stop button.
Internal safety valve set at 700 bar to prevent overpressure.
External adjustable pressure relief valve.
For use with single acting or double acting cylinders for heavy lifting or production applications.
Options: roll bars and glycerine pressure gauge.
NOTE: Pressure gauge is not included.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Larzep |
| Origin | ES |
| Technical Specs | |
|---|---|
| Valve type | 4-way, 3-position |
| Material Type | Steel |
| Maximum Operating Pressure (bar) | 700 |
| Pump Type | Solenoid Valve |
| Reservoir Capacity (litres) | 12.5 |
| Output Flow Rate at 50 bar (l/min) | 5.90 |
| Output Flow Rate at 700 bar (l/min) | 0.54 |
| Motor Size (kW) | 1.10 |
| Valve Operation | Electric |
| Motor Electrical Specification | 230V-1ph-50Hz |
| Dimensions and weights | |
|---|---|
| Weight | 53 Kg |
