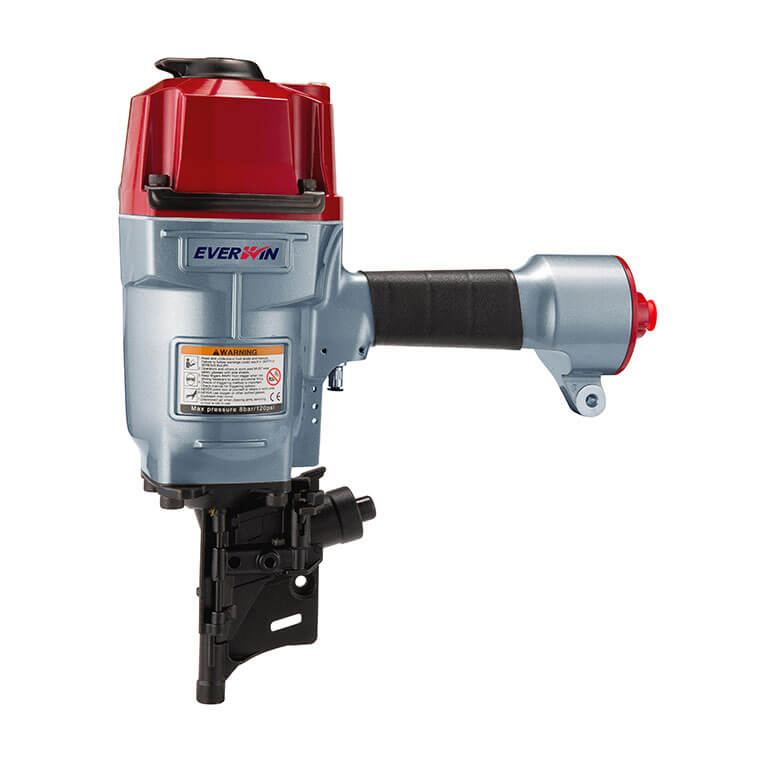

Everwin PN80PAL MACHINE-MOUNTED 80mm (3-1/4") Wire Coil Nailer
FEATURES:
- AUTOMATION-GEARED: For machine-mounted applications
- SUFFICIENT DRIVING ENERGY: Powerful for heavy duty applications
- HIGH SPEED OPERATION: Actuates up to 15 CYCLES/SECOND
- PLUG & PLAY SETUP: Remote control valve assembly
- ACTUATION SPEED BOOSTED: Geared with high flow driver guide
- ADJUSTABLE METAL EXHAUST COVER: Boosts flexibility in a durable manner
- EXCLUSIVE COMPONENT TREATMENT: Special-treated nose and driver
- ENLARGED 3/8" INLET: Boosts air refill speed
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Everwin |
| Origin | TW |
| Technical Specs | |
|---|---|
| Air Consumption | 1.8 (3.8 cfm) |
| Maximum Operating Pressure (bar) | 5~8 bar (70~120 psi) |
| Driving Power (in-lbs @100psi) | 837 |
| Dimensions and weights | |
|---|---|
| Weight | 3.3 kgs (7.2 lbs) |
| Length | 307mm (12.1") |
| Max. height | 362mm (14.2") |
| Max. width | 112mm (4.4") |
| Fastener Specifications | |
|---|---|
| Fastener type | 15° Wire Collated Coil Nails |
| Nail Length | 50~83mm (2"~3-1/4") |
| Nail Head Dia. | 5.7~7.2mm (0.224"~0.283") |
| Nail Shank Dia. | 2.5~3.3mm (0.099"~0.131") |
| Loading Capacity | 2000 ~ 3000 |
| Shank Type | Smooth, Screw or Ring |
