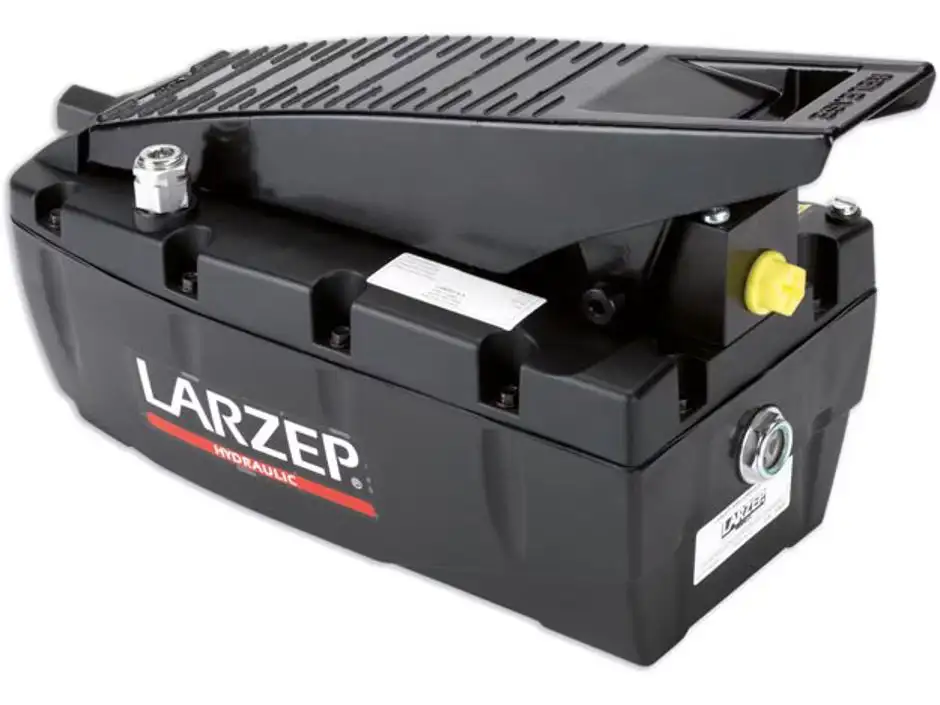

Air Hydraulic Pump, Pedal Operated For use with Single Acting Cylinders
- On Hydraulic Air Pump Z models for Single Acting cylinders, the pedal acts as the control valve, by controlling advance, hold and retract functions. In hold mode, the pump maintains the output pressure.
- On Hydraulic Air Pump ZR models, operation is controlled by a 3 metre remote pendant.
- Double Acting models are fitted with a manual 4-way 3 position control valve.
- The hydraulic port on all models is 3/8 inch;-NPT female.
- Working pressure 700 bar.
- 4, 7, 10 and 20 litre pumps are fitted with steel tanks.
- Optional steel base plate available for Z12107 part number.
- Air Inlet Port: 1/4 inch; BSP female.
- Air Pressure: 2,8 - 10 bar.
- Air Consumption: 400 N l/min.
- 700 bar Flow Rate: 0,14 l/min.
- Sound level: 75 dBA
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Larzep |
| Origin | ES |
| Technical Specs | |
|---|---|
| Maximum Operating Pressure (bar) | 700 |
| Pump Type | Pedal Operated |
| Output Flow Rate at 50 bar (l/min) | 0.14 |
| Air Consumption | 400 l/min (14.1 cfm) |
| Max Air Pressure | 2,8 - 10 |
| Others | |
|---|---|
| Oil capacity (litres) | 2.1, 4.0, 6.9, 10, 20 |
