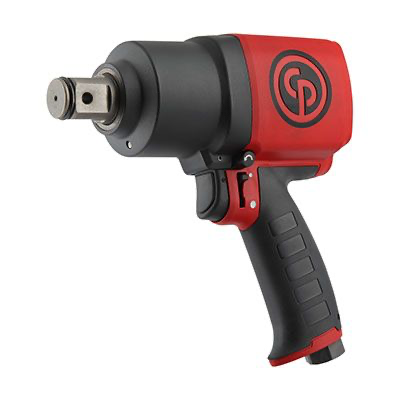

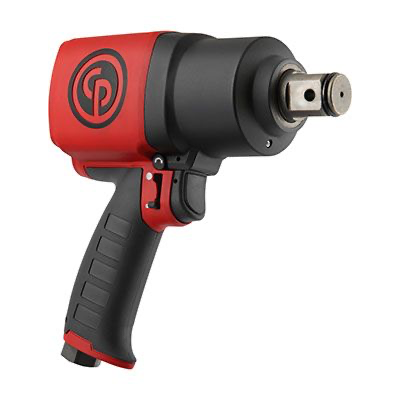

CP7779 1" PNEUMATIC IMPACT WRENCH

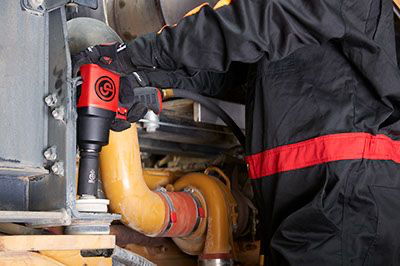

Designed for general maintenance, this impact wrench is comfortable and efficient to use in workshop environment thanks to their one-hand power control and forward / reverse selector - S2S technology. With its maximum torque in reverse up to 1,440 ft.lbs / 1,950 Nm, the CP7769 offers high productivity. The twin hammer impact mechanism and its composite housing offer high durability while being both lightweight and compact
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Chicago Pneumatic |
| Technical Specs | |
|---|---|
| Torque Range | 407 - 1950 N.m |
| Free Speed rpm | 6,500 rpm |
| Clutch type | Twin Hammer |
| Min. hose diameter | 13 mm |
| Air inlet thread size | 3/8" |
| Square drive | 1" |
| Sound Pressure level | 108 dB(A) |
| Blows per minute | 1200 |
| Max working torque fwd | 1460 N.m |
| Max torque reverse | 1950 N.m |
| Dimensions and weights | |
|---|---|
| Weight | 3.3 kgs (7.2 lbs) |
| Length | 290 mm |
