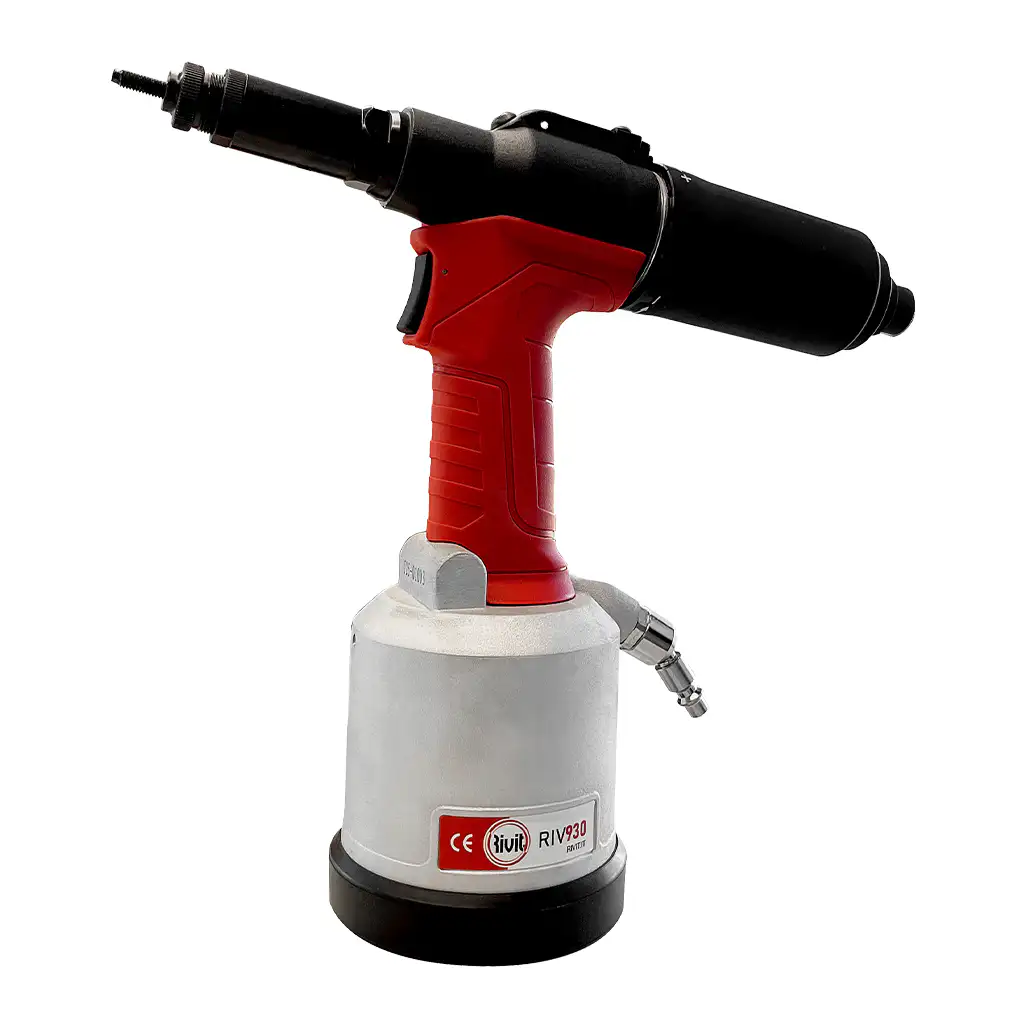

RIV930-HYDRO TOOL FOR RIV. NUTS W/KIT FROM M3TOM12 M3-M12
The hydro-pneumatic RIV930 tool, is designed to place RIVSERT female rivet nuts from M3 to M12 and RIVBOLT male rivet nuts from M4 to M8.
More robust and complete, it has greater power, allowing you to install rivet nuts up to M12.
Significant optimizations on the air motor to increase the rivet nut screwing and unscrewing speed.
Tool with stroke adjustment for more stable and repetitive applications.
Practicality combined with excellent ergonomics make it absolutely attractive to all customers who use it continuously and professionally.
Tie rod holder head manually adjustable.
Cone made of steel for greater strength and durability.
Start button robust and well integrated in the structure.
Ergonomic handle improves machine usability.
Protective and anti-slip rubber base for air body.
Adjustable air connection.
Quick release button for emergency ejection of the rivet nut.
Adjustment ring for stroke.
Dedicated pierce for balancer hook.
Composed of:
1 hydropneumatic tool with kit M6 mounted
1 kit M3, M4, M5, M8, M10, M12
1 wrench 12-17-22-23.5-26
1 ring for balancer
1 oil syringe.
Applications
Automotive, mechanical industry, carpentry. (Rivsert Cylindrical open)
Tanks, airtight, boxes, tubs. (Rivsert Cylindrical blind)
Mechanics of the food sector. (Rivsert Hexagonal, Half hexagonal)
Metal carpentry, mechanical industry, electronics, automotive. (Rivbolt)
Packaging
New cardboard packaging that is lightweight, easy-to-handle, versatile and environmentally friendly.
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | RIVIT |
| Origin | IT |
| Technical Specs | |
|---|---|
| Air Consumption | 5 l/s |
| Max power | 30,600 N |
| Sound Pressure level | 76 dB(A) |
| Stroke | 8.0 mm |

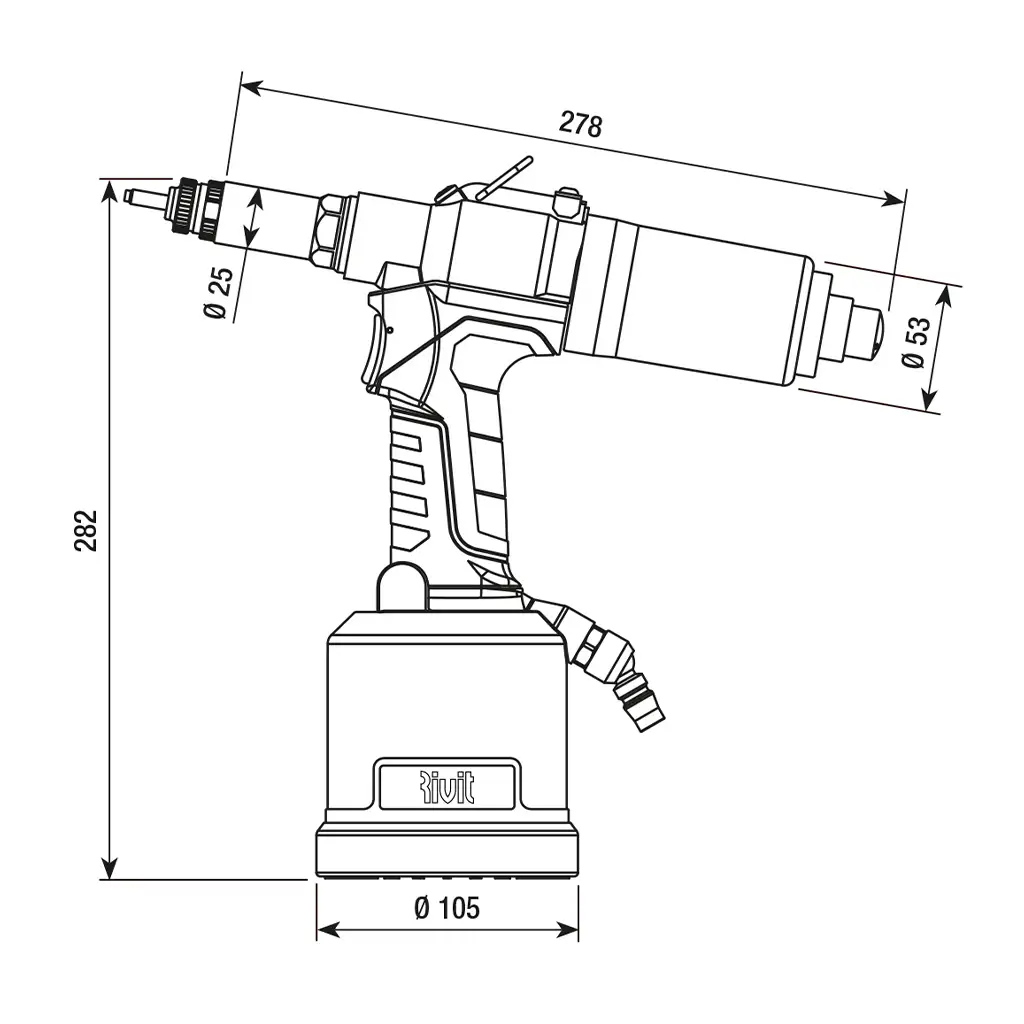

| Dimensions and weights | |
|---|---|
| Weight | 1.9 kg |
