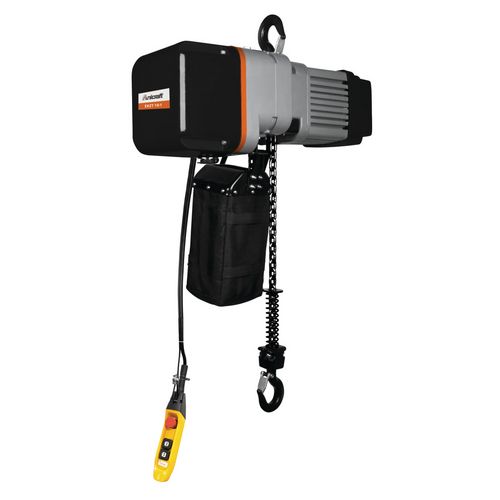

Electric chain hoist EKZT 2003-2 robust and smooth running, with mounting suspension (2t)
Overload protection by friction clutch
Integrated operating limit switch
Helical gear for smooth and quiet operation
High-strength load chain, good wear resistance and high safety factor
Safe stowage of the chain by standard chain storage
Gear housing made of high-strength aluminum alloy for light weight, high strength and good corrosion resistance
Thermal overload protection
Load-bearing capacity: 2 t
Stroke: 6 m
Lifting speed(s): 2.6m/min
Control unit cable length: 6 m
Brand: UNICRAFT by STURMER
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | UNICRAFT |
| Technical Specs | |
|---|---|
| Stroke | 6m |
| Load-carrying capacity | 2t |
| Max. lifting speed | 2.6m/min |
| Control pendant cable length | 6m |
| Number of chain strands | 1 |
| Dimensions and weights | |
|---|---|
| Weight | 59 Kg |
| Length x width x height | 507X315X520 mm |
| Electrical Data | |
|---|---|
| Electrical connection | 400 V / 3 Ph ~50 Hz |
