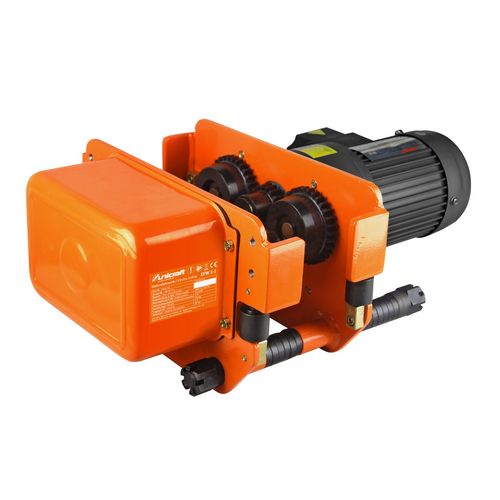

Electric trolley EFW 2-1 With a driving speed and 2 t maximum carrying capacity
Power connection and control of the chassis via the control bottle of the associated electric chain hoist Suitable for beams with profile types I, IPB, IPBl, IPBv, and IPE, and specified carrier flange width.
Load-bearing capacity: 2 t
Load-bearing capacity: 2 t
Travel speed: 13.5 m/min
Carrier flange width: 74 – 140 mm
Max. curve radius: 4500 mm
Travel speed: 13.5 m/min

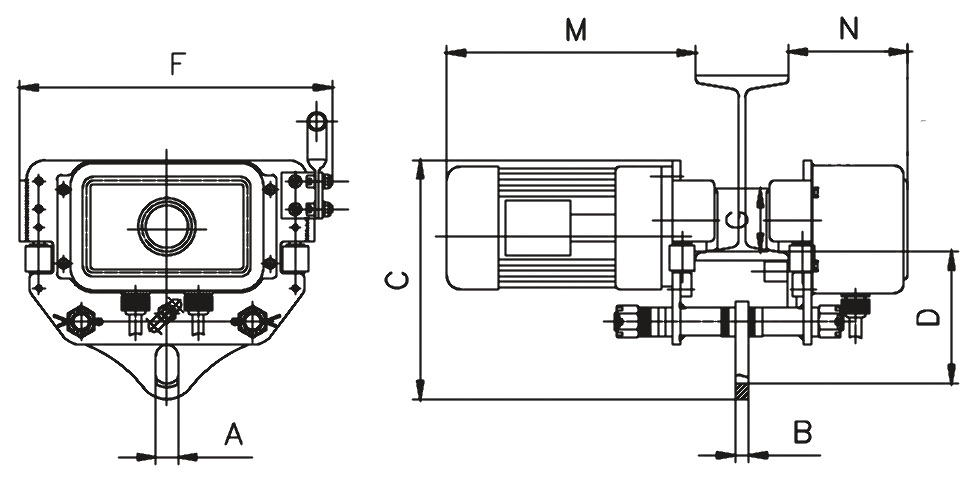

Width of holding eye: 30mm (A)
Thickness of mounting plate: 14mm (B)
Distance between holding eye and support surface: 140mm (D)
Motor throat: 312mm (M)
Control cabinet extension: 135mm (N)
Brand: UNICRAFT by STURMER
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | UNICRAFT |
| Technical Specs | |
|---|---|
| Power | 0.4 KW |
| Wheel/Disc diameter | 75mm |
| Load-carrying capacity | 2t |
| Carrier flange width | 74-180 mm |
| Travel speed | 13.5 m/min |
| Dimensions and weights | |
|---|---|
| Weight | 36 Kg |
| Length x width x height | 722mmX340mmX280mm |
| Width of holding eye | 30mm (A) |
| Thickness of mounting plate | 14mm (B) |
| Distance between holding eye and support surface | 140mm (D) |
| Motor throat | 312 mm (M) |
| Control cabinet extension | 135mm (N) |
| Electrical Data | |
|---|---|
| Electrical connection | 400 V / 3 Ph ~50 Hz |
