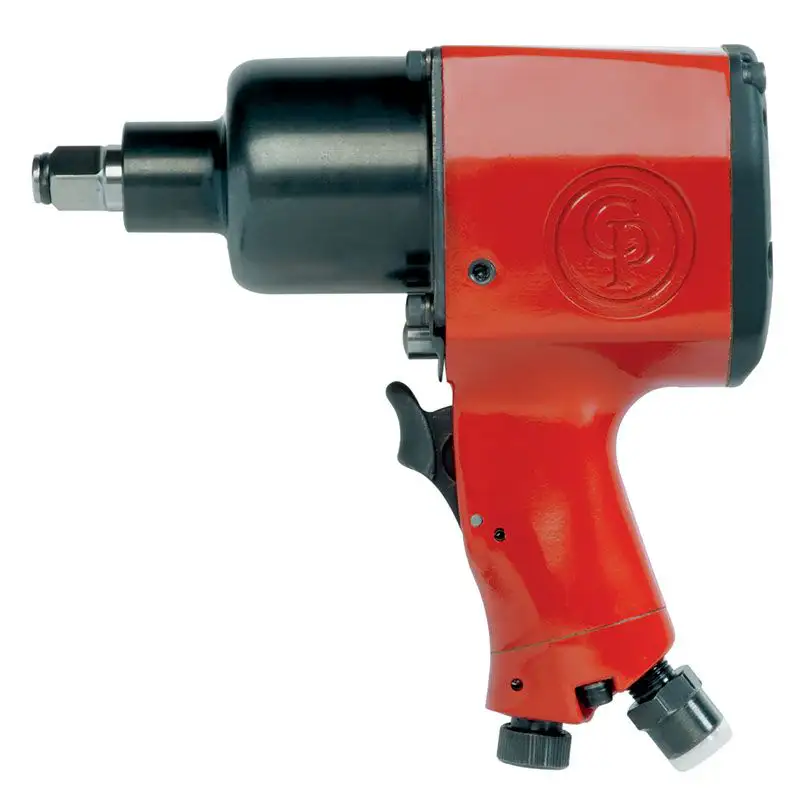

CP9561 - 3/4" PISTOL PNEUMATIC IMPACT WRENCH (1250 N.M)
The CP9541/42/61 series of 3/4", 1" impact wrenches - features the fast and reliable Dyna-Pact pin clutch mechanism, an aluminium body, and steel clutch housing. The design offers high performance in term of torque, vibration, and durability for MRO applications. CP9561 with hole socket retainer, which delivers a maximum reverse torque of up to 1,250 Nm /885 ft.lb.
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Chicago Pneumatic |
| Technical Specs | |
|---|---|
| Free Speed rpm | 5500 |
| Clutch type | Pin clutch |
| Min. hose diameter | 13 mm |
| Air inlet thread size | 3/8" |
| Square drive | 3/4" |
| Sound Pressure level | 96.8 db(A) |
| Blows per minute | 900 |
| Max working torque fwd | 950 Nm |
| Max torque reverse | 1250 Nm |
| Body | Aluminium |
| Min working torque fwd | 200 Nm |
| Dimensions and weights | |
|---|---|
| Weight | 5.1 kg |
