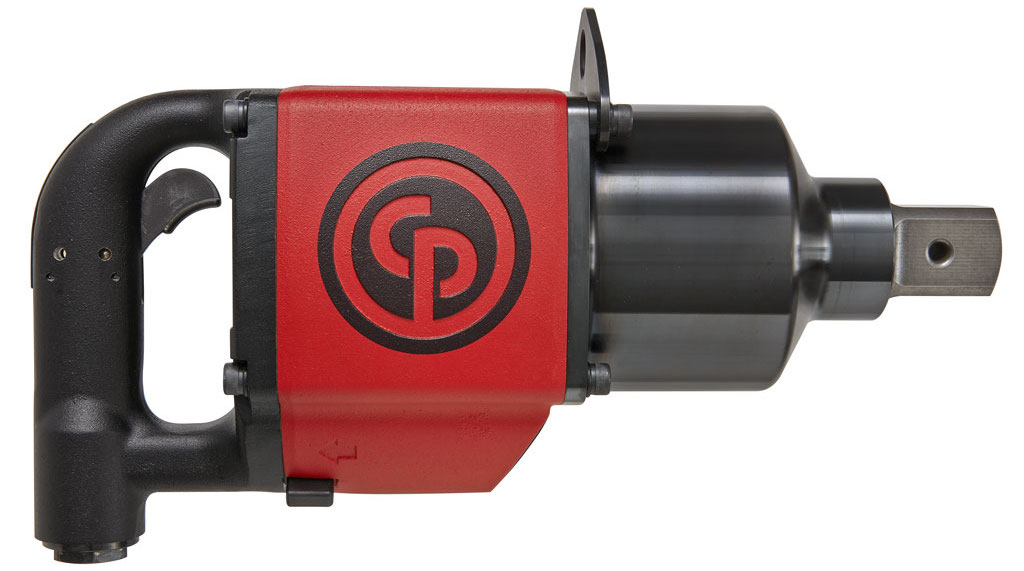

CP6135-D80 1-1/2" D-HANDLE PNEUMATIC IMPACT WRENCH
This compact and reliable tool is designed with a durable pinless rocking dog clutch mechanism, aluminium body and steel clutch housing to work comfortably in all heavy-duty assembly or disassembly applications. Maximum reverse torque is 8,000 Nm / 5,900 ft.lb.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Chicago Pneumatic |
| Origin | HU |
| Technical Specs | |
|---|---|
| Torque Range | 5500 - 8000 Nm |
| Free Speed rpm | 2800 |
| Clutch type | Pinless rocking dog |
| Min. hose diameter | 19 mm |
| Square drive | 1-1/2" |
| Sound Pressure level | 109 dB(A) |
| Max working torque fwd | 5500 Nm |
| Max torque reverse | 8000 Nm |
| Dimensions and weights | |
|---|---|
| Weight | 16 Kg |
| Length | 408 mm |
