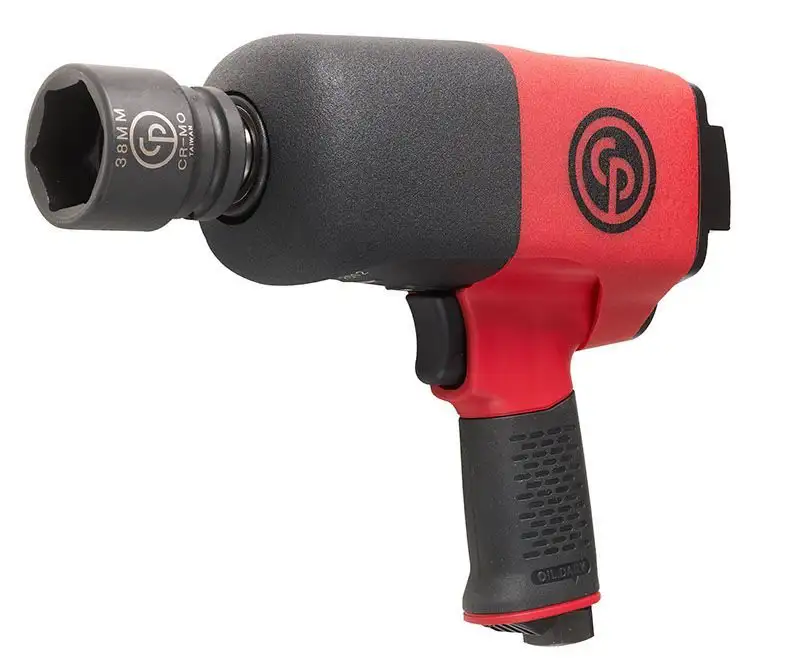

CP8272-P 3/4" PISTOL PNEUMATIC IMPACT WRENCH (1650 N.M)
This series of ultralight, ergonomic impact wrenches, designed with a durable twin hammer clutch mechanism is highly recommended. The advantages of pneumatic technology are reinforced by the lightweight composite body design and an aluminium clutch housing for long-term use. Bolt mounting and removal is facilitated by ergonomic options such as an integrated bail and rubber grip handle. The CP82 series is available in ring dual socket retainer for a maximum reverse torque up to 1,650 Nm (1217 ft.lb).
Documents
Specifications
| Info | |
|---|---|
| Brand | Chicago Pneumatic |
| Technical Specs | |
|---|---|
| Free Speed rpm | 6500 |
| Clutch type | Twin Hammer |
| Min. hose diameter | 13 mm |
| Air inlet thread size | 3/8" |
| Square drive | 3/4" |
| Sound Pressure level | 96.8 db(A) |
| Blows per minute | 1000 |
| Max working torque fwd | 1250 N.M |
| Max torque reverse | 1650 N.M |
| Body | Composite |
| Min working torque fwd | 250 Nm |
| Dimensions and weights | |
|---|---|
| Weight | 3.3 kgs (7.2 lbs) |
