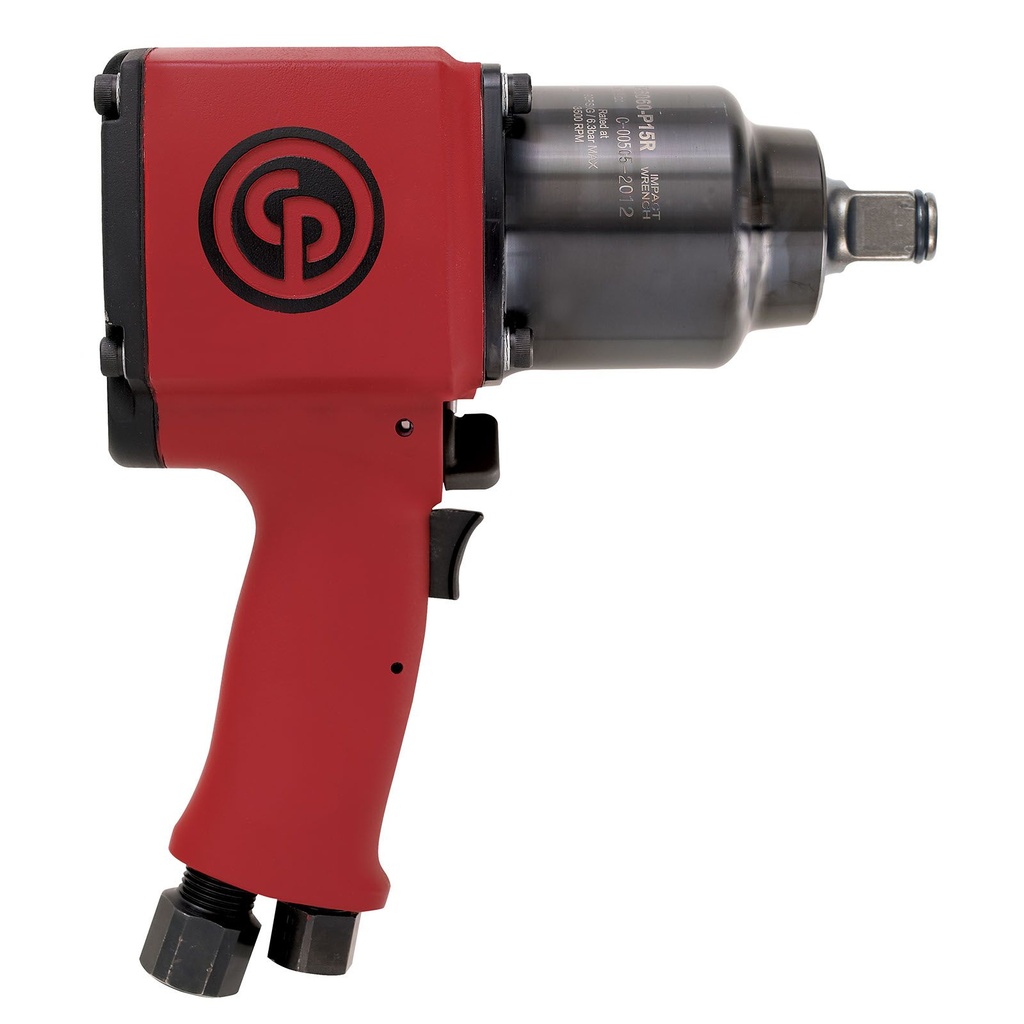

CP6060-P15R - 3/4" PISTOL PNEUMATIC IMPACT WRENCH (1490 N.M)
CP6060-70 impact wrench for heavy duty industrial users features a 3/4" and 1" square drive, and delivers reverse torque up to 1490 Nm / 1100 ft.lb. Designed with the 2-jaw clutch mechanism, aluminium body, and steel clutch housing.
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Chicago Pneumatic |
| Origin | JP |
| Technical Specs | |
|---|---|
| Free Speed rpm | 4000 |
| Clutch type | 2-jaw |
| Air Consumption | 25 l/s |
| Min. hose diameter | 13 mm |
| Air inlet thread size | 3/8" |
| Square drive | 3/4" |
| Sound Pressure level | 92 db(A) |
| Blows per minute | 1100 |
| Max working torque fwd | 1220 Nm |
| Max torque reverse | 1490 Nm |
| Min working torque fwd | 270 Nm |
| Body | Aluminium |
| Dimensions and weights | |
|---|---|
| Weight | 5.3 Kg |
