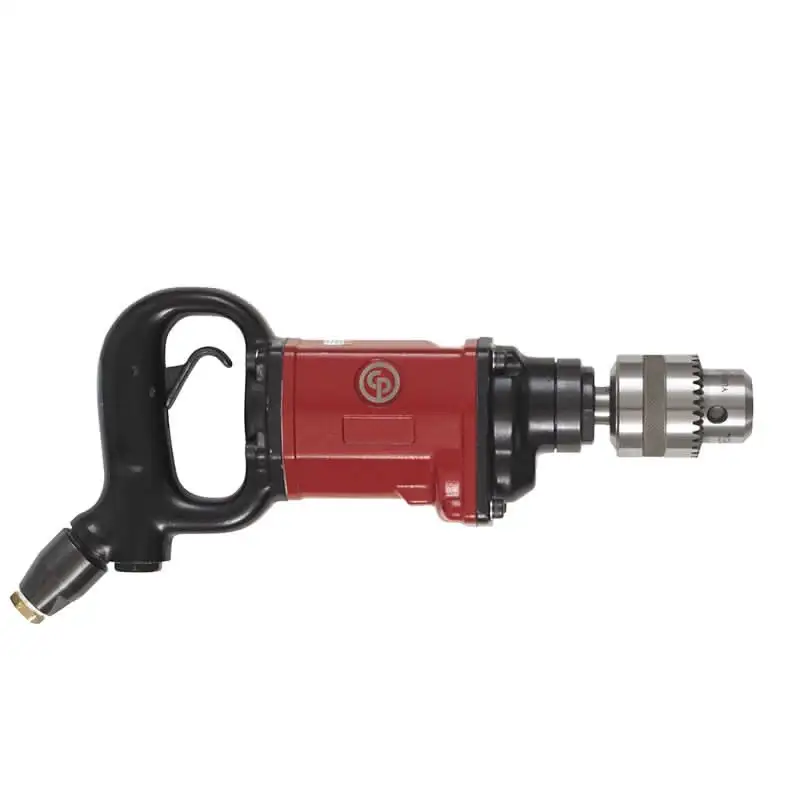

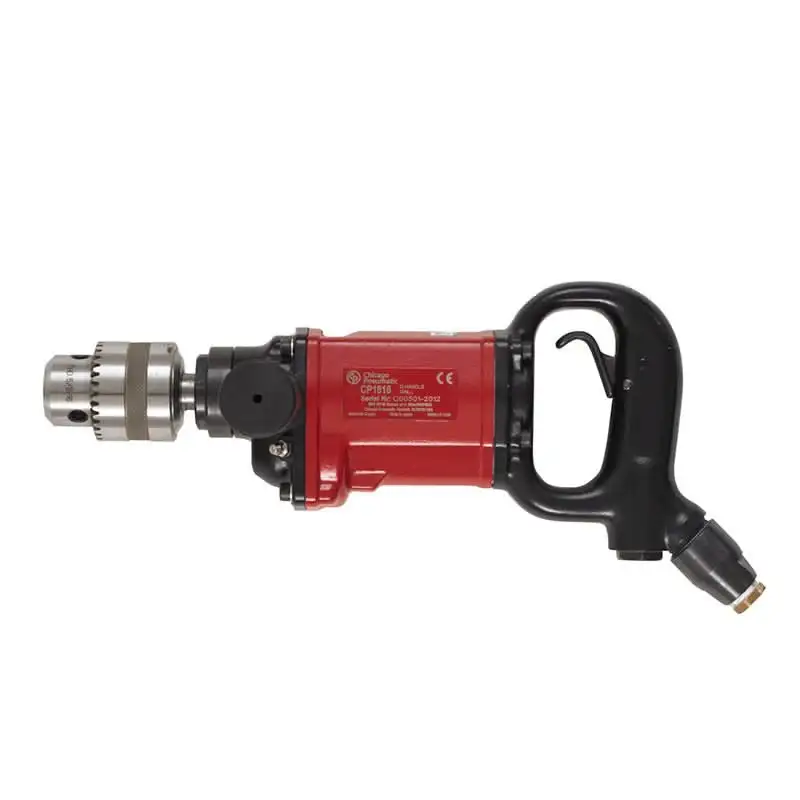

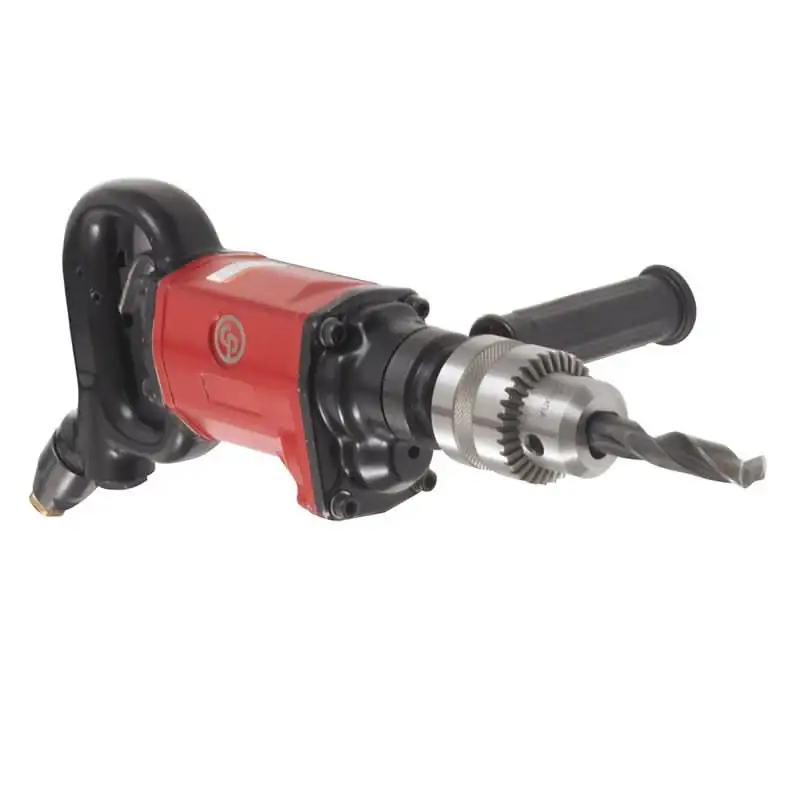

CP1816 5/8"(16 Mm) d-handle pneumatic drill
The CP1816 straight D-Handle drill is defined by a 1.0 Hp (750 W) pneumatic motor, 800 RPM and 34.3 Nm (25.3 ft.lb) stall torque. Chuck capacity is 5/8' (16 mm). CP1816 straight D-Handle drill cover a large variety of applications like drilling of mild steel, cast iron.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | Chicago Pneumatic |
| Origin | JP |
| Technical Specs | |
|---|---|
| Free Speed rpm | 800 |
| Power | 750 W |
| Air Consumption | 20 l/s |
| Min. hose diameter | 13 mm |
| Air inlet thread size | 3/8" |
| Sound Pressure level | 90 dB(A) |
| Stall torque | 34.3 Nm |
| Dimensions and weights | |
|---|---|
| Weight | 3.7 kg |
