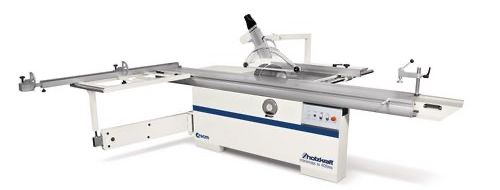

Sliding table saw minimax si 400es 26

https://www.unitedagents.net/web/image/product.template/11808/image_1920?unique=5705c0e
(0 review)

Scoring device equipped with its own drive and easily adjustable from the outside
Smooth-running and precise format sliding carriage made of anodized aluminium with proven and permanently smooth-running ball contact system on hardened, 10-year warranty on wear of the guideways
Large table extension (longitudinally adjustable) with material roller on telescopic arm
Extendable telescopic cross-cut fence with two folding stops
Precise rip fence, foldable for large panels, with quick clamping and integrated fine adjustment
Table widening, table extension and eccentric clamp as standard equipment
Saw unit made of a robust cast iron ring with permanently precise double swivel segment guide and zero-point swivel for a smooth and perfect cut, 6 years Holzkraft warranty on wear of the swivel segments
Large-surface work table made of stress-free grey cast iron
High dead weight ensures precision and smooth running
Equipped with powerful three-phase motor

Brand: HOLZKRAFT Germany
Origin: Made in Italy

0.000 EGP 0.0 EGP 0.000 EGP VAT Excluded

0.000 EGP VAT Excluded

Request a quote

  • Brand
  • Origin
  • Weight
  • Supply voltage
  • Mains frequency
  • Scoring blade motor output
  • Drive motor output
  • Max. cutting width with rip fence
  • Max. cross cut width left from saw blade
  • Trimming length
  • Saw blade angle
  • Max. cutting height 90°
  • Max. cutting height 45°
  • Explanation to: Max. cutting height
  • (Main) saw blade diameter
  • (Main) saw blade speed
  • Extraction port diameter bottom
  • Saw blade protection extraction port diameter
  • Diameter saw blade
  • Saw blade speed
  • Sliding carriage length
  • Sliding carriage width
  • Sliding carriage height
  • Table length
  • Table width
  • Work height

This combination does not exist.

Terms and Conditions
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

Specifications

Info
Brand HOLZKRAFT
Origin IT
Dimensions and weights
Weight 700 kg
Electrical Data
Supply voltage 400 V
Mains frequency 50 Hz
Scoring blade motor output 0.55 kW
Drive motor output 7.0 kW
Circular saw unit
Max. cutting width with rip fence 1270 mm
Max. cross cut width left from saw blade 3260 mm
Trimming length 2600 mm
Saw blade angle 90 – 45 °
Max. cutting height 90° 136.5 mm
Max. cutting height 45° 97 mm
Explanation to: Max. cutting height Explanation to: Max. cutting height
(Main) saw blade diameter 400 mm
(Main) saw blade speed 4000 min¯¹
Extraction port
Extraction port diameter bottom 120 mm
Saw blade protection extraction port diameter 80 mm
Pre-scoring unit
Diameter saw blade 120 mm
Saw blade speed 9200 min¯¹
Sliding carriage and table
Sliding carriage length 2600 mm
Sliding carriage width 360 mm
Sliding carriage height 142 mm
Table length 940 mm
Table width 560 mm
Work height 900 mm
