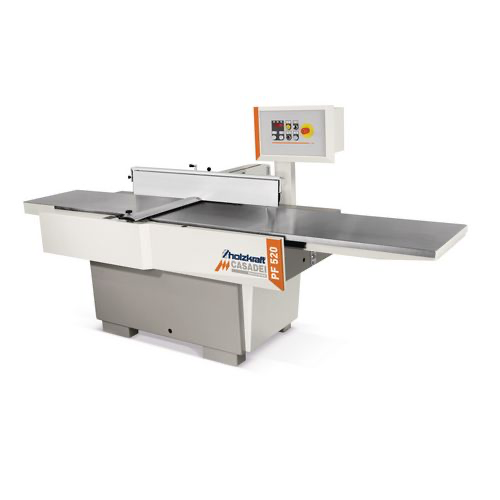

Surface planer CASADEI PF 520 M TERSA With 520 mm planing width and motorized table adjustment
- Dressing tables made of gray cast iron
- The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and the knife shaft remains the same in every adjustment position
- Large precision aluminium dressing fence, slightly tiltable 90 - 45 °
- The inclination of the stop is easily readable from the operator side
- As standard with auxiliary stop for safe planing of even narrow workpieces
- Large four-knife shaft, precision-mounted
- Quiet running with precision aggregate and heavy cast iron execution
- Powerful industrial motor with direct start
- Additional equipment PF 520 M:
- extra long inlet table
- motorized adjustment of the dressing table
- Digital display for chip removal
- Control panel over table
- PF 520 M with motorized height adjustment of the infeed table and digital display of the chip removal
- The dressing tables made of a highly ribbed cast construction remain permanently flat and precise
- The planing tables are adjusted by a precise parallelogram system
- Thus, the distance of the table tips to the blade shaft remains the same in each adjustment position
- No adjustment and more screws
- Planer blade change in seconds
- self-locking
- Especially low noise
- Perfect planing result
Room amenities
Tersa planer knife
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | HOLZKRAFT |
| Dimensions and weights | |
|---|---|
| Weight | 870 Kg |
| Length x width x height | 3005 X 1457 X 668 mm |
| Electrical Data | |
|---|---|
| Electrical connection | 400 V / 3 Ph ~50 Hz |
| Drive motor output | 5 Kw |
| Mains frequency | 50 Hz |
| Extraction port | |
|---|---|
| Extraction port diameter thickness | 120 mm |
| Jointing | |
|---|---|
| Total length of table | 3000 mm |
| Task table length | 1775 mm |
| Max. cutting depth of joints | 8 mm |
| Planing stop length | 1100 mm |
| Planing stop height | 160 mm |
| Planing stop pivoting range | 90 – 45° |
| Planing knife shaft | |
|---|---|
| Planing shaft type | TERSA |
| Planing shaft diameter | 120 mm |
| Number of planing blades | 4 St |
| Planing shaft speed | 5000min¯¹ |
| Max. planing width | 520 mm |
