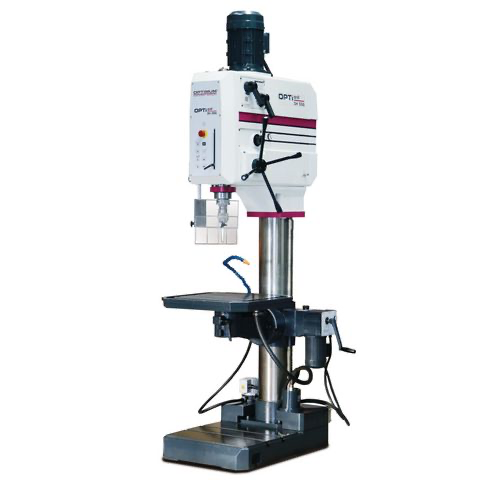

Gear drilling machine OPTIdrill DH 55G (55mm)
- Heavy, solid cast construction
- Dirt and water resistant, easy to clean membrane keypad
- Electronics 24V DC
- Electrical quill feed
- Depth stop
- Threading attachment
- Machine light integrated in the drill head
- Large, height-adjustable protective screen with safety switch for maximum protection of the user
- Large dimensioned, solid drill table, precisely worked with parallel T-slots and circumferential cooling water channel, strongly ribbed on the back, tiltable ± 90 ° sideways

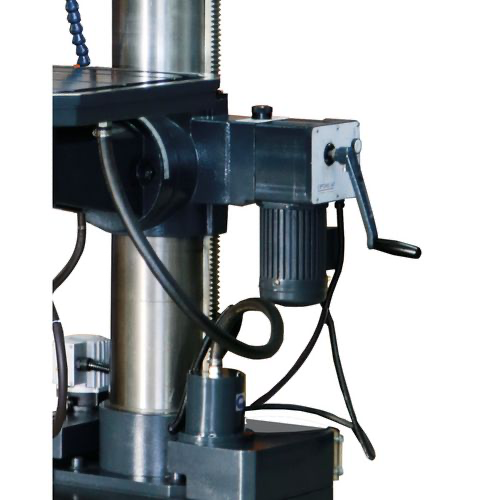

- Motorized rotary table height adjustment
- Coolant system and external coolant tank can be removed for easy and complete emptying
- Chip filter according to Machinery Directive
- Extremely stable, thick-walled cast-iron column for high power consumption
- Solid base plate with parallel T-slots, precision surface finish

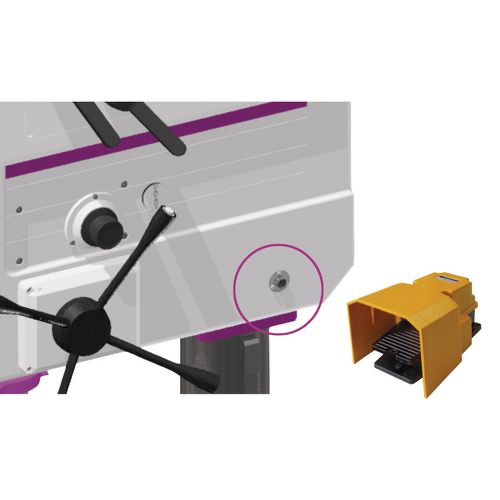

- Optional foot switch for switching between clockwise and anticlockwise rotation and for thread cutting
Scope of Supply:
- Keyless chuck 1-16 mm
- Morse cone MK 4 / B 16
Documents
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | OPTIMUM |
| Dimensions and weights | |
|---|---|
| Weight | 850 kg |
| Column diameter | Ø 200 mm |
| Length x width x height | 850 x 1 060 x 2500 mm |
| Electrical Data | |
|---|---|
| Electrical connection | 400 V / 3 Ph ~50 Hz |
| Motor output | 2.2 / 2.8 kW |
| Coolant pump motor | 100 W |
| Drilling performance | |
|---|---|
| Drilling performance in steel | Ø 55 mm |
| Continuous drilling performance steel | Ø 50 mm |
| Thread tapping steel | M 42 |
| Spindle | |
|---|---|
| Spindle sleeve stroke | 190 mm |
| Spindle holder | MT 4 |
| Throat | 400 mm |
| Spindle sleeve feed | 3 stages: 0.1 / 0.15 / 0.2 mm/rev |
| Rotational speeds | |
|---|---|
| Spindle speeds | 45 - 2 000 rpm |
| Number of speeds | 16 stages |
| Drilling table | |
|---|---|
| Drilling table workspace L x W | 600X600 mm |
| T-slot size | 18 mm / 160 mm / 3 |
| Drilling table load bearing capacity | 350 kg |
| Drill table rotation/lateral pivot | 360° / ± 90° |
| Clearance spindle - drilling table | 130 - 725 mm |
| Drilling Table T-slot size/distance/amount | 18 mm / 150 mm / 2 |
| Machine base | |
|---|---|
| Machine base work area L x W | 515 x 570 mm |
| Clearance spindle - machine base | max. 1 300 mm |
