Post drills with SIEMENS inverter technology and polyamide gearwheels.
With continuously adjustable speed control. Installation of an optional footswitch possible
Facts that impress in terms of quality, performance and price
- Heavy, solid cast design
- Frequency converter
- Thread tapping function
- Smooth action thanks to polished multi-tooth carrier
- Excellent concentricity thanks to hardened and polished main spindle
- Low-maintenance, grease-lubricated gearbox
- Gearbox with PA6 gearwheels
- Large speed range
- Generously dimensioned, height adjustable protective screen with safety switch for greatest possible user protection
- Adjustable drilling depth stop with millimetre scale
- Right-handed/left-handed rotation
- Machine lamp integrated in drilling head
- Integrated push-out tool for easy tool changes
- Precision machined drilling table with two diagonal T-slots with all-around cooling water channel
- Thick walled cast column for high force absorption and stability
- Solid baseplate, large dimensions und pronounced ribbing on rear
- Optional footswitch available for toggling between clockwise/
- anticlockwise run and for thread tapping (Article no. 3050032)

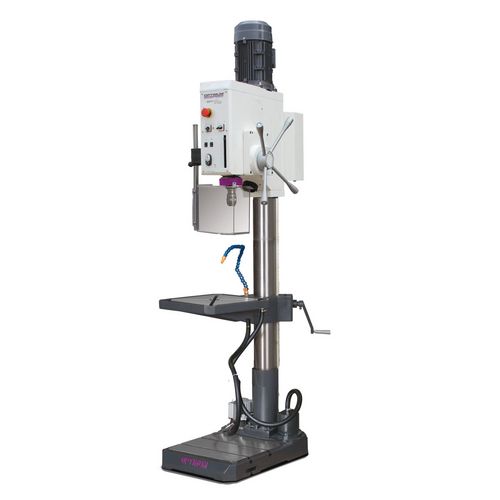

OPTIdrill DH 32GSV
- Automatic spindle sleeve feed
- Coolant system and chip filter in line with machinery directive
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Info | |
|---|---|
| Brand | OPTIMUM |
| Dimensions and weights | |
|---|---|
| Weight | 324 kg |
| Column diameter | Ø 115 mm |
| Length x width x height | 820 x 450 x 2 230 mm |
| Electrical Data | |
|---|---|
| Electrical connection | 400 V / 3 Ph ~50 Hz |
| Motor output | 2.2 kW |
| Coolant pump motor | 40W |
| Drilling performance | |
|---|---|
| Drilling performance in steel | Ø 30 mm |
| Continuous drilling performance steel | Ø 26 mm |
| Thread tapping steel | M 16 x 2 mm |
| Spindle | |
|---|---|
| Spindle sleeve stroke | 125 mm |
| Spindle holder | MT 4 |
| Throat | 285 mm |
| Spindle sleeve feed | 0.05 / 0.1 mm |
| Rotational speeds | |
|---|---|
| Spindle speeds | 40 - 3 000 rpm |
| Number of speeds | 4 speeds, electronically controlled |
| Drilling table | |
|---|---|
| Drilling table workspace L x W | 400 x 420 mm |
| T-slot size | 14 mm, 2 diagonal |
| Drilling table load bearing capacity | 120 kg |
| Drill table rotation/lateral pivot | 360° |
| Clearance spindle - drilling table | 820 mm |
| Drilling Table T-slot size/distance/amount | 14 mm / 150 mm / 2 |
| Machine base | |
|---|---|
| Machine base work area L x W | 420 x 395 mm |
| Clearance spindle - machine base | max. 1 270 mm |
