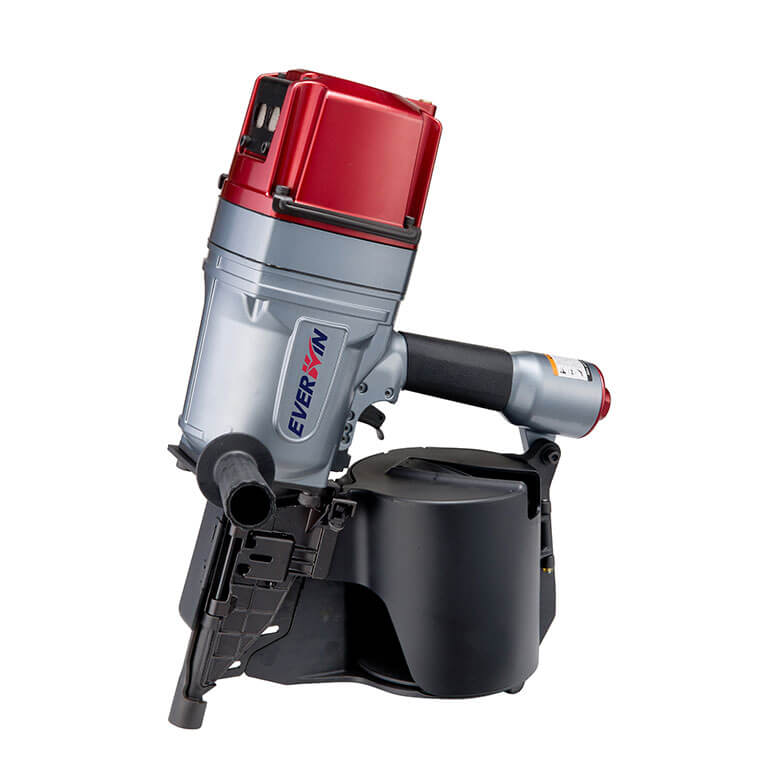

PN130B INDUSTRIAL 130mm (5-1/8") Wire Coil Nailer
The PN130B Coil Nailer is designed to drive up to a 5-1/8" nail. Built for high speed operations and designed to handle the toughest production applications. For boxes, crates, carton-to-skid, and pallet applications.
FEATURES
SUFFICIENT DRIVING ENERGY
Powerful for heavy duty applications
AUX SIDE HANDLE
Shock-absorbent auxiliary side handle
FLEXIBLE TRIGGER OPTIONS
Available with contact fire trigger
HIGH SPEED OPERATION
Fast cycle time boosts efficiency
METAL NAIL TRAY
Extremely reliable and wear-proof
METAL BODY PROTECTOR
Helps prevent drag and tear wear on the tool frame
OVERALL STRUCTURE REINFORCED
Boosted lifespan from generation one PN130
المستندات
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
المواصفات
| Info | |
|---|---|
| الماركة | Everwin |
| Origin | TW |
| Applications | Pallet Assembly / Crate Assembly / Drum Construction / Mattress Box / Assembly Manufactured Housing Bedding |
| Technical Specs | |
|---|---|
| استهلاك الهواء | 3.3 (7.0 cfm) |
| Working pressure | 5~6.9 bar (70~100 psi) |
| Dimensions and weights | |
|---|---|
| الوزن | 6.0 kgs (13.2 lbs) |
| الطول | 338mm (13.3") |
| Max. height | 467mm (18.4") |
| Max. width | 156mm (6.1") |
| Fastener Specifications | |
|---|---|
| Fastener Type | 15° Wire Collated Nails |
| Loading Capacity | 120 ~ 225 |
| Shank Type | Smooth, Screw or Ring |
| Nail Length | 90~130mm (3-1/2"~5-1/8") |
| Nail Head Dia. | 7.5~8.6mm (0.295"~0.338") |
| Nail Shank Dia. | 3.3~3.8mm (0.131"~0.150") |
