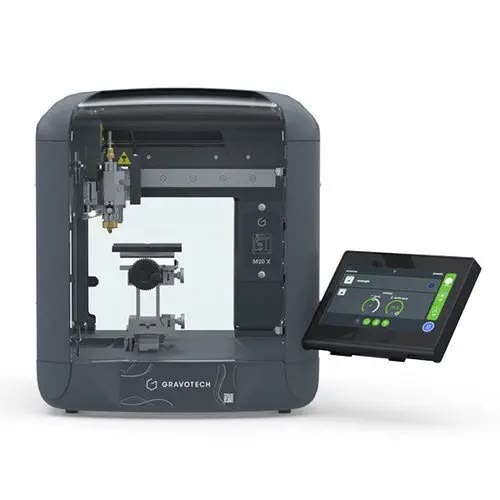

M20X STD Rotary Engraving Machine
M20 X, 3 axis engraving system , Work area 100X100 mm , Standard Plug - NEW Spindle motor 4.36mm - with software Gravostyle
TECHNICAL SPECIFICATIONS:
- Dimensions x, y, z (mm): 350 x 375 x 360 (405 with cube)
- Weight (Kg): 12
- Engraving area (mm:) 100 x 100
- Maximal item size (mm): 190 x 110 x 100
- Power supply: 120/240V AC – 50/60 Hz
- Communication: USB and Bluetooth
- Z Stroke (mm): 30
- Z Clearance (mm): 100
- Engraving max speed (mm/s): 40
- Tool diameter (mm): 4,36
- Spindle rotation speed (rpm): 19,600
What included:
- M20X Machine
- 7" Touch Screen
- USB Cable
- Power supply
- Gravostyle Discovery Software
- User Guide usb stick
- Tool Box
- Jig (100mm)
- Depth Nose
Brand: Gravotech
Origin: Made in France
المواصفات
| Info | |
|---|---|
| الماركة | Gravotech |
| Origin | FR |
| Technical Specs | |
|---|---|
| spindle type | Top load spindle Hollow shaft motor |
| Max. speed | 40 mm/s (1,58 in/s) |
| Point & shoot | Yes |
| Automatic Z axis | Yes |
| Rotation speed | up to 19200 rpm |
| Tool diameter | 4,36 mm (0,17'') |
| Sound Pressure level | 62 dB(A) |
| Max. object size (L x W x H) | 90 x 110 x 100 mm (7,48 x 4.33 x 3.94'') - (10 kg - 22,04 lbs) |
| Operating Temperature | min. +5°C (+ 41°F) - max. +40°C (+104 °F) |
| Z axis stroke | 30 mm (1.18'') |
| Software | Gravostyle / Gravotouch |
| Dimensions and weights | |
|---|---|
| الوزن | 12.9 kg (28.43 lbs) |
| Length x width x height | Right-side touchscreen: 375 x 550 x 408 mm (14.76 x 21.65 x 16.06’’) Top touchscreen: 375 x 350 x 552 mm (14.76 x 13.77 x 21.73’’) |
| Marking Specs | |
|---|---|
| Marking Area | 100 x 100 mm (option: 120 x 100 mm) 3.94 x 3.94'' (option: 4.72 x 3.94'') |
| Software and Connection | |
|---|---|
| Connections | Wi-Fi, USB, Ethernet |
