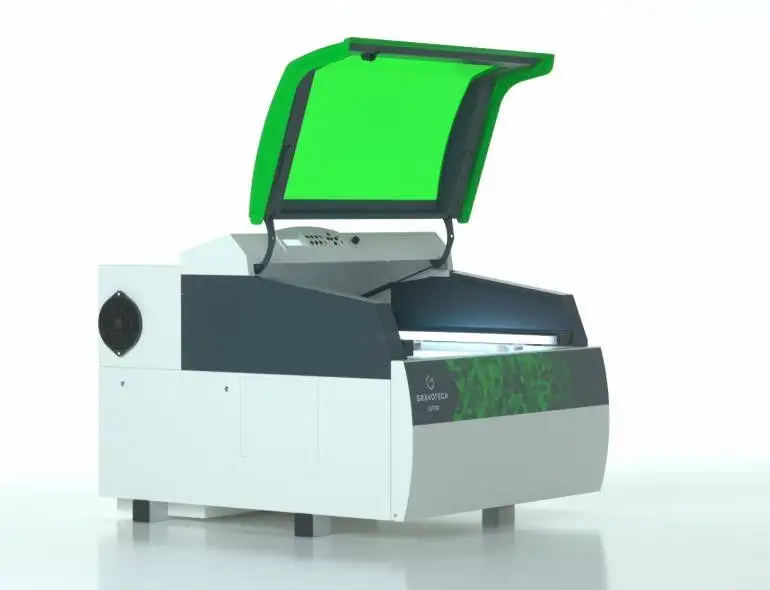

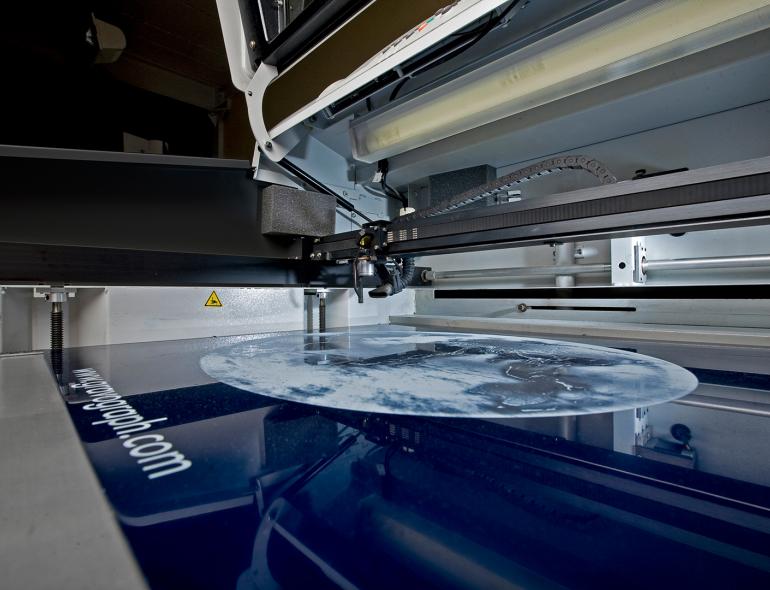

LS900 CO2 60W Laser Engraver
The LS900 industrial laser engraver, comes in CO2, Fiber, or Edge (dual sources). They're ideal if looking for a fast laser engraver or laser cutter.

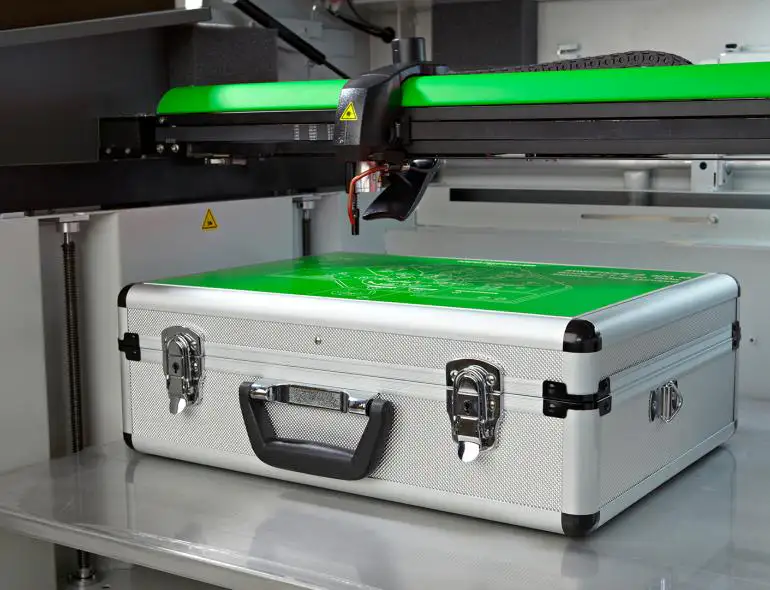

- LARGE LASER ENGRAVING MACHINE
It’s the unique engraving surface on the market that allows you not only to work with standard semi full sheets 24'' x 24'' but also take advantage of the 9.84 in height z-axis making bulky objects easier than ever. The working space becomes even easier thanks to the pass-through, the smallest machine on the market to feature this, making this ideal for both individual projects and even small batch work, with most objects able to fit, it becomes a question not of can I mark it, but when I mark it.
- FAST LASER ENGRAVER AND LASER CUTTER
Taking advantage of our long history with industrial laser engravers we bring that technology to you with the LS900 CO2 laser engraver up to 4m/sec which makes it a major asset to improve your productivity. With a choice between step motors or brushless motor, you can find a tailored solution for your projects and needs, keeping productivity at the forefront of your workflow. The decision, unique for laser stations, let you prioritize depending on your budget and speed requirements.
- UNLIMITED POSSIBILITIES
Mark and cut anything with your choice of laser source, the Fiber laser machine for metals, CO2 laser engraver for organics and minerals, or Edge, combining a Fiber laser machine and CO2 laser engraver into one. Use a UV printer to add colors to your creations then let the LS900 cut them automatically thanks to the Print & Cut feature, which comes as standard, to create colorful signage and personalized gifts. This large laser engraver is great for acrylic laser cutting, and is widely used as a sign engraver, plastic cutter, and plastic engraver.
المستندات
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
المواصفات
| Info | |
|---|---|
| الماركة | Gravotech |
| Origin | FR |
| Technical Specs | |
|---|---|
| Laser diode | 60W CO2 |
| Max. object weight | 25 kg (55.2 lbs) |
| Laser safety classification | Class 2 |
| Laser Speed | 2 m/s (79 in/s) |
| Laser spot size (Engraving fineness) | 0.1 to 0.4 mm (0.004 to 0.01'') |
| Max. Object Height | 250 mm (9.8'') |
| Point & shoot | Yes |
| Automatic focus | Yes |
| Connectivity | USB |
| Software | Gravostyle™ (delivered with the machine) + compatible with Corel Draw, Adobe Illustrator, or any graphic software |
| Beam diameter | 0.1 to 0.4 mm (0,004'' to 0,01'') |
| Operating Temperature | 10 °C - 35 °C (50°F - 95 °F) |
| Dimensions and weights | |
|---|---|
| الوزن | From 170 kg to 240 kg (from 374.8 to 529.1 lbs) |
| Machine dimensions (L x W x H) | 945 x 1080 x 810 mm (37.2'' x 42.5'' x 31.9'') |
| Marking Specs | |
|---|---|
| Marking Area | 610 x 610 mm (24'' x 24'') |
Service & Support
Training
Our training modules are designed to optimize your use of our solutions and are available for our full range of machines, software and accessories.
Technical Support
We bring you local support in your language where we have established presence directly and with our partners.
Maintenance
Thanks to experience gathered with our partners and our suppliers, we can offer you a wide range of services.
