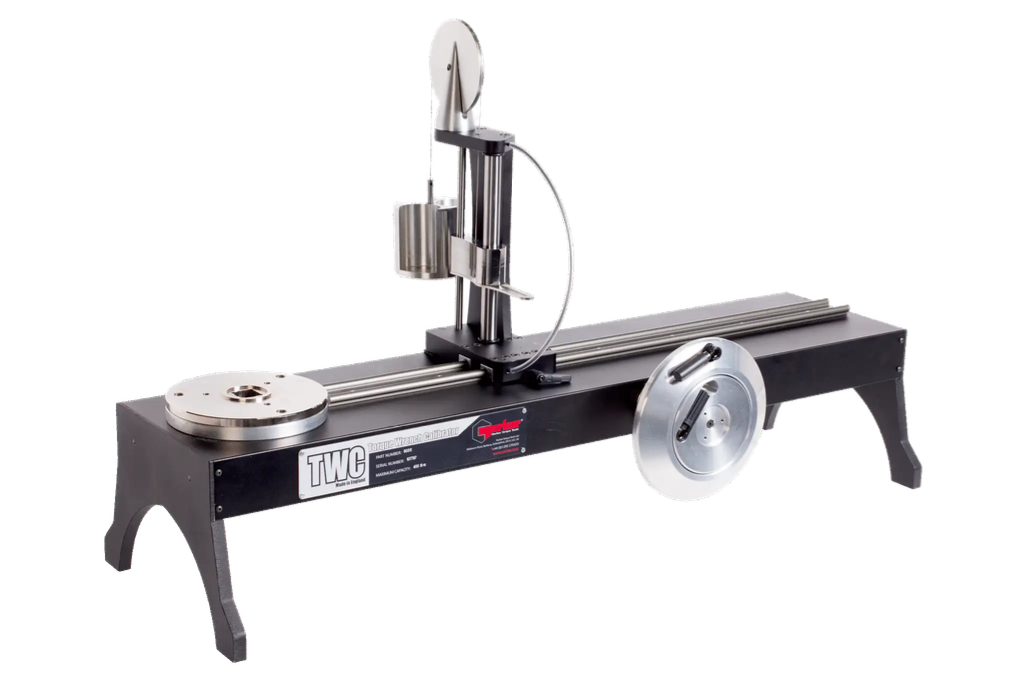

Torque Wrench Calibrator Manual Operation 1500 N·m
- Enables torque wrench calibration or testing in accordance with ISO 6789-2:2017 if used with T-Box 2
- Two speed gearbox designed for a sufficient balance of speed and control which allows for both fast loading of the torque wrench and a slower more precise loading
- During calibration, the TWC maintains a fixed position on the handle of the torque wrench
- Rotating transducer ensures that the load is applied 90° to the torque wrench handle. The benefit of this is the forces are applied squarely to the load point of the handle
- Counterbalance reaction is designed to support the weight of the wrench so that the weight does not become a parasitic force within the calibration system. The floating nature of the support means that the wrench is able to find its own natural level rather than being constrained as in many other loading devices. Any such constraint will be a parasitic force within the system
- Lightweight alloy construction ensures the TWC is easily transported, making it well suited for mobile laboratory applications
- When testing for conformity or calibrating to ISO6789:2017 any transducer must not be used below 5% of its capacity when used with TWC. This statement does not apply to a TWC when used in a accredited laboratory
- Compatible transducers include Flange Mounted Transducer, Static Transducers and Pro-Test
- Can produce certification to ISO 6789-2:2017 when used with T-Box 2 or T-Box XL™ software version 3.0.0.X and TDMS version 4.0.X
- Made in the UK
