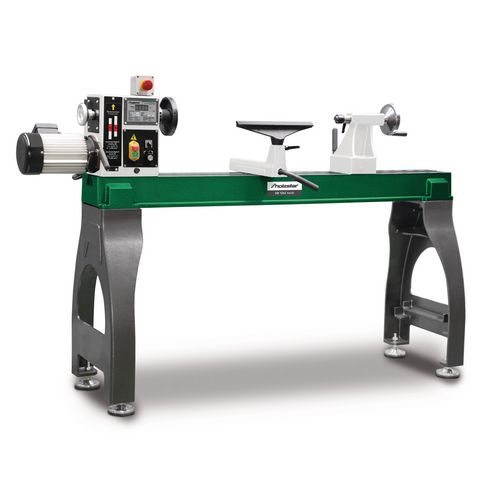

Description:
- The torsion-resistant cast iron machine bed ensures smooth running and precision
- Tailstock and headstock are also made of sturdy gray cast iron
- Drive can be moved freely on the machine bed
- Tailstock with quick release lever and handwheel
- Tailstock standard with revolving center point
- Tailstock quill with bore for machining long workpieces
- The tailstock is easily and quickly clamped on the machine bed thanks to single lever clamping
- Variable speed regulation from 0 - 3,200 rpm in two speed levels: 0 - 1,200 and 0 - 3,200 rpm
- A digital display shows the currently selected speed
- Right-left rotation as standard
Unit: pc(s).
Packaging unit: 1
- Revolving center of gravity
- Digital display
- Cast iron machine bed
- Tailstock with quick release lever and handwheel
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
المواصفات
| Info | |
|---|---|
| الماركة | HolzStar |
| Technical Specs | |
|---|---|
| السرعة | 0 – 3200min¯¹ |
| Max. turning diameter | 460mm |
| Travel of tailstock sleeve | 110mm |
| Taper of tailstock sleeve | MK 2 |
| Dimensions and weights | |
|---|---|
| الوزن | 189 kg |
| الطول | 2060 mm |
| Max. height | 230 mm |
| Max. width | 1185 mm |
| Width/depth (product) approx. | 500 mm |
| Height (product) approx. | 1200 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Spindle | |
|---|---|
| Spindle head thread | M 33 x 3.5 |
| Rotational speeds | |
|---|---|
| Number of speeds | 2 |
| Speed Range | |
|---|---|
| Speed control | Electronically variable |
