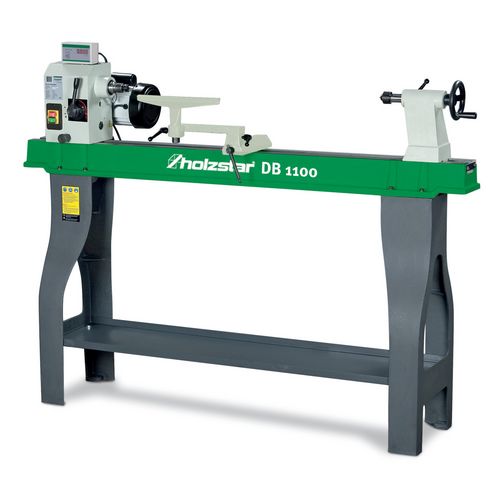

Description:
- Torsionally rigid gray cast iron machine bed for smooth running and precision
- Tailstock and headstock also made of sturdy gray cast iron
- Wide, easily adjustable turning steel support
- Tailstock with quick release lever and handwheel
- Tailstock (stroke 50 mm) as standard with revolving center point
- Tailstock quill with bore for machining long workpieces
- Variable speed regulation from 500 - 2000 min-1 with digital speed display
- The headstock can be rotated by 180°
- Ideal for turning large diameter
Unit: pc(s).
Packaging unit: 1
- Face plate Ø 15 cm
- Revolving tailstock tip
- substructure
- Four zag face driver
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
المواصفات
| Info | |
|---|---|
| الماركة | HolzStar |
| Technical Specs | |
|---|---|
| السرعة | 500 - 2000 min¯¹ |
| Max. turning diameter | 358mm |
| Travel of tailstock sleeve | 50 mm |
| Taper of tailstock sleeve | MK 2 |
| Dimensions and weights | |
|---|---|
| الوزن | 111 kg |
| الطول | 1620 mm |
| Max. height | 185mm |
| Max. width | 1100 mm |
| Width/depth (product) approx. | 340mm |
| Height (product) approx. | 1215 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Spindle | |
|---|---|
| Spindle head thread | M 33 x 3.5 |
| Rotational speeds | |
|---|---|
| Number of speeds | 10 |
| Speed Range | |
|---|---|
| Speed control | Mechanical variable |
