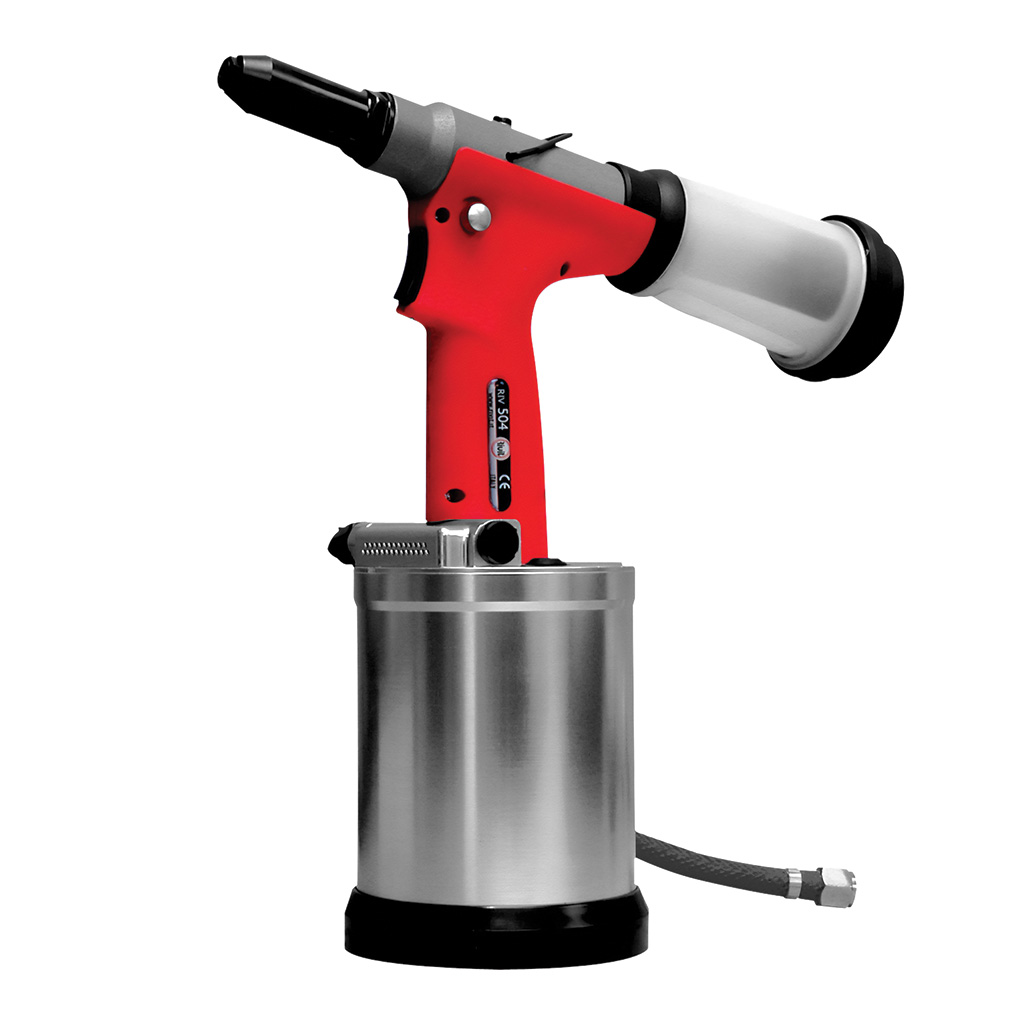

RIV504
The hydropneumatic tool RIV504 is designed to place standard and structural blind rivets up to d.6,4mm, in all materials.
RIV504 is a hydropneumatic tool with retention of the rivet and capture of the separated mandrel
Plastic handle and aluminium body make the tool light and handy, consequently easy to use for operators.
RIV504 combines functionality with a highly competitive price, which makes it very attractive for those who uses this kind of tools continuously and professionally.
Technical Specifications
| air working pressure (bar) | 6 |
| min/max air pressure (bar) | 5 - 7 |
| air consumption x cycle 6 bar (lt) | 4,8 |
| stroke (mm) | 26 |
| tensile stress at 6bar (N) | 16000 |
| weight (kg) | 1,866 |
| vibrations (m/s²) | < 2,5 |
| noise level dB(A) | 78,5 |
المواصفات
| الماركة | RIVIT |
| Origin | IT |
