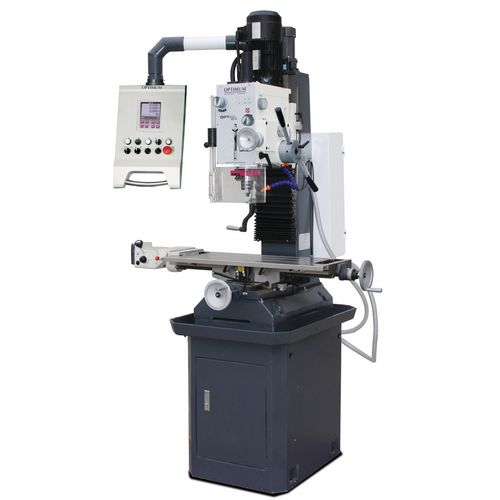

Drilling-milling machine OPTImill MB 4P

https://www.unitedagents.net/web/image/product.template/9652/image_1920?unique=3c9b86e
(تقييم 0)

Universal drilling/milling machine with digital position display DRO 5 and cast machine chassis. MB 4PV with continuously variable electronically controlled drive

DELIVERY CONTENTS
> Machine mobile base
> Morse taper MT 3/B16
> Reduction sleeve MT 4 - MT 3
> Drawbar M16
> Operating tool
- operating tool
Brand: Optimum

0.000 EGP 0.0 EGP 0.000 EGP غير شامل الضريبة

0.000 EGP غير شامل الضريبة

Price on request

  • الماركة
  • الوزن
  • الطول
  • Width/depth (product) approx.
  • Height (product) approx.
  • Coolant pump motor
  • Supply voltage
  • Mains frequency
  • Drive motor output
  • Standard
  • Max. size milling head
  • Max. size shaft milling cutter
  • Drilling performance steel (S235JR)
  • Continuous drilling performance steel (S235JR)
  • Horizontal milling table length
  • Horizontal milling table width
  • Max. clearance vertical spindle - horizontal milling table
  • Horizontal milling table T-groove size
  • Horizontal milling table T-groove number
  • Horizontal milling table T-groove spacing
  • Travel X axis manual
  • Travel Y axis manual
  • Travel Z axis manual
  • Travel X axis automatic
  • Vertical spindle reach
  • Vertical spindle spindle chuck
  • Vertical spindle speed range
  • Vertical spindle swivel range milling cutter head Z - X plane
  • Vertical spindle number of gears
  • Vertical spindle tightening bar
  • Vertical spindle quill diameter
  • Vertical spindle quill stroke

هذه التركيبة غير موجودة.

 Request a quote

الشروط والأحكام
14-day money-back guarantee
Shipping: 4-5 Business Days (stock only)

مشاركة

المواصفات

Info
الماركة OPTIMUM
Dimensions and weights
الوزن 495 kg
الطول 1600 mm
Width/depth (product) approx. 930 mm
Height (product) approx. 2110 mm
Electrical Data
Coolant pump motor 100 W
Supply voltage 400 V
Mains frequency 50 Hz
Drive motor output 1.1 / 1.5kW
Standars & Certification
Standard DIN EN 55011
Drilling/milling output
Max. size milling head 63 mm
Max. size shaft milling cutter 28mm
Drilling performance steel (S235JR) 32 mm
Continuous drilling performance steel (S235JR) 28 mm
Milling table horizontal
Horizontal milling table length 800 mm
Horizontal milling table width 240mm
Max. clearance vertical spindle - horizontal milling table 420 mm
Horizontal milling table T-groove size 14mm
Horizontal milling table T-groove number 3
Horizontal milling table T-groove spacing 80 mm
Travel
Travel X axis manual 560 mm
Travel Y axis manual 195mm
Travel Z axis manual 350mm
Travel X axis automatic 480 mm
Vertical spindle
Vertical spindle reach 258 mm
Vertical spindle spindle chuck MT 4
Vertical spindle speed range 95 – 3200min¯¹
Vertical spindle swivel range milling cutter head Z - X plane ± 45°
Vertical spindle number of gears 2 x 6
Vertical spindle tightening bar M 16
Vertical spindle quill diameter 75 mm
Vertical spindle quill stroke 120 mm
