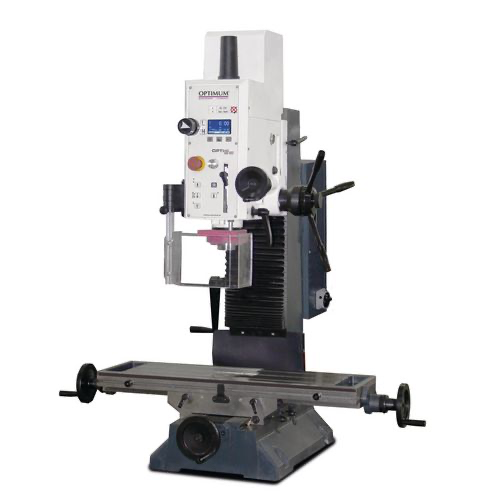

Drilling-milling machine OPTImill MB 4SVD
Universal drilling/milling machine with digital position display DRO 5 and cast machine chassis. MB 4PV with continuously variable electronically controlled drive
- Precisely processed
- Thread cutting function
- Servo drive
- Solid and generously dimensioned cross table, precisely surface-finished with T-slots and adjustable gibs
- Adjustable end stops
- Stable dovetail guide with adjustable gibs
- Right-left rotation
- LED machine light
- Fine feed
- Emergency stop switch
- Drilling/milling head can be tilted by ±45
- Height-adjustable protective screen with microswitch against flying chips and parts, for maximum protection of the user
المستندات
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
المواصفات
| Info | |
|---|---|
| الماركة | OPTIMUM |
| Dimensions and weights | |
|---|---|
| الوزن | 320 Kg |
| الطول | 1155 mm |
| Width/depth (product) approx. | 980 mm |
| Height (product) approx. | 1360 mm |
| Electrical Data | |
|---|---|
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Drive motor output | 3 kW |
| Drilling table | |
|---|---|
| Max. distance spindle to column | 275 mm |
| Drilling/milling output | |
|---|---|
| Max. size milling head | 63 mm |
| Max. size shaft milling cutter | 26 mm |
| Drilling performance steel (S235JR) | 32 mm |
| Continuous drilling performance steel (S235JR) | 28 mm |
| Milling table horizontal | |
|---|---|
| Horizontal milling table length | 800 mm |
| Horizontal milling table width | 240mm |
| Horizontal milling table T-groove size | 14mm |
| Horizontal milling table T-groove number | 3 |
| Horizontal milling table T-groove spacing | 63 mm |
| Travel | |
|---|---|
| Travel X axis manual | 450 mm |
| Travel Y axis manual | 200 mm |
| Vertical spindle | |
|---|---|
| Vertical spindle spindle chuck | MK 4 / MK 16 |
| Vertical spindle speed range | 60 3000 min¯¹ |
| Vertical spindle swivel range milling cutter head Z - X plane | ± 45° |
| Vertical spindle number of gears | 2 x 6 |
| Vertical spindle tightening bar | M 16 |
| Vertical spindle quill stroke | 120 mm |
