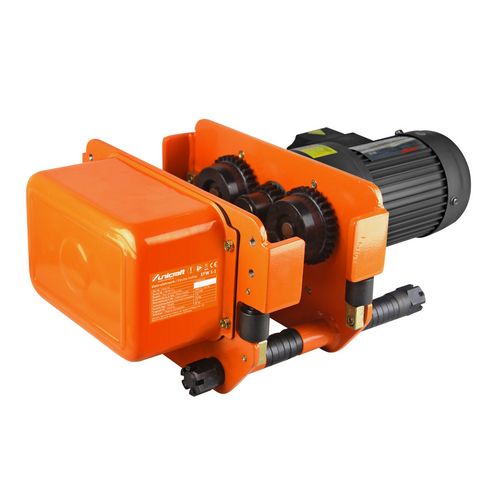

Electric Trolly EFW-1 series With a driving speed and 1 t maximum load capacity
Power connection and control of the chassis via the control bottle of the associated electric chain hoist Suitable for beams with profile types I, IPB, IPBl, IPBv, and IPE, and specified carrier flange width.
Load-bearing capacity: 1 t
Travel speed: 13.5 m/min
Carrier flange width: 74 – 140 mm
Max. curve radius: 4500 mm
Travel speed: 13.5 m/min

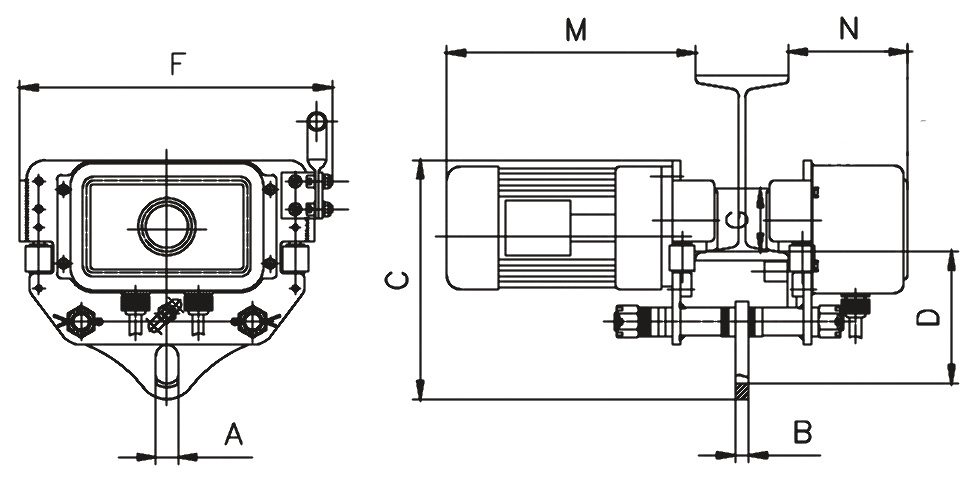

Width of holding eye: 24mm (A)
Thickness of mounting plate: 14mm (B)
Distance between holding eye and support surface: 145mm (D)
Motor throat: 310mm (M)
Control cabinet extension: 135mm (N)
Brand: UNICRAFT by STURMER
Specifications
| Info | |
|---|---|
| Brand | UNICRAFT |
| Technical Specs | |
|---|---|
| Power | 0.4 KW |
| Wheel/Disc diameter | 68 mm |
| Load-carrying capacity | 1t |
| Carrier flange width | 74-180 mm |
| Travel speed | 13.5 m/min |
| Dimensions and weights | |
|---|---|
| Weight | 26kg |
| Length x width x height | 715 x 340 x 260 mm |
| Width of holding eye | 24mm (A) |
| Thickness of mounting plate | 14mm (B) |
| Distance between holding eye and support surface | 145mm (D) |
| Motor throat | 310mm (M) |
| Control cabinet extension | 135mm (N) |
| Electrical Data | |
|---|---|
| Electrical connection | 400 V / 3 Ph ~50 Hz |
